01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Console And Dispenser Parts

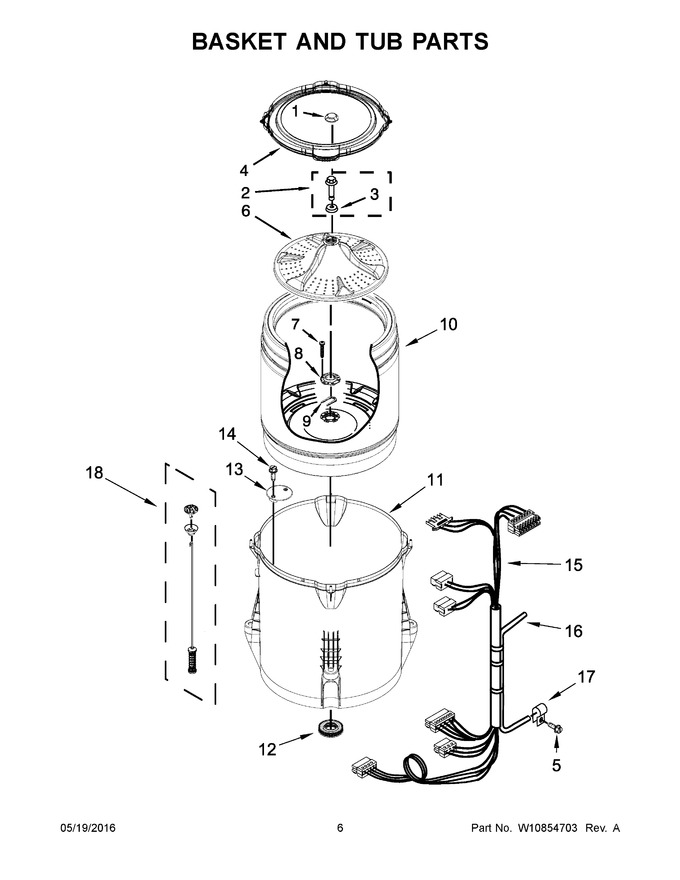

04 - Basket And Tub Parts
05 - Gearcase, Motor And Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10305251 | Cap, Impeller (Replaces: W10305251) |
|
Immediately | $ 20.81 | ||||
| 2 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 5.54 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 10.47 | ||||
| 4 | WPW10556325 | Tub Ring (Replaces: W10556325) |
|
Immediately | $ 183.74 | ||||
| 5 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 | ||||
| 6 | WPW10553968 | Impeller (washplate) (Replaces: W10553968) |
|
$ 281.52 | |||||
| 7 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 6.80 | ||||
| 8 | W10528947 | Hub - Driven, Basket (Replaces: W10396887) |
|
Immediately | $ 40.16 | ||||
| 9 | W11385424 | Retainer, Drive Block (Replaces: W10402178) |
|
Immediately | $ 11.67 | ||||
| 10 | W10521298 | Basket Assembly |
|
$ 437.41 | |||||
| 11 | W10324648 | Tub (Replaces: W10238301) |
|
$ 325.67 | |||||
| 12 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 88.36 | ||||
| 13 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 58.73 | |||||
| 14 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 15 | W10858334 | Harness, Lower (includes Pressure Switch Hose) (Replaces: W10610081) |
|
$ 201.37 | |||||
| 16 | WP353244 | Hose, Pressure Switch (Replaces: W10236981) |
|
Immediately | $ 78.00 | ||||
| 17 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.58 | ||||
| 18 | W10780044 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W10748954) |
|
Immediately | $ 142.93 |
