01 - Cover Sheet
02 - Cabinet Parts
03 - Liner And Ice Maker Parts

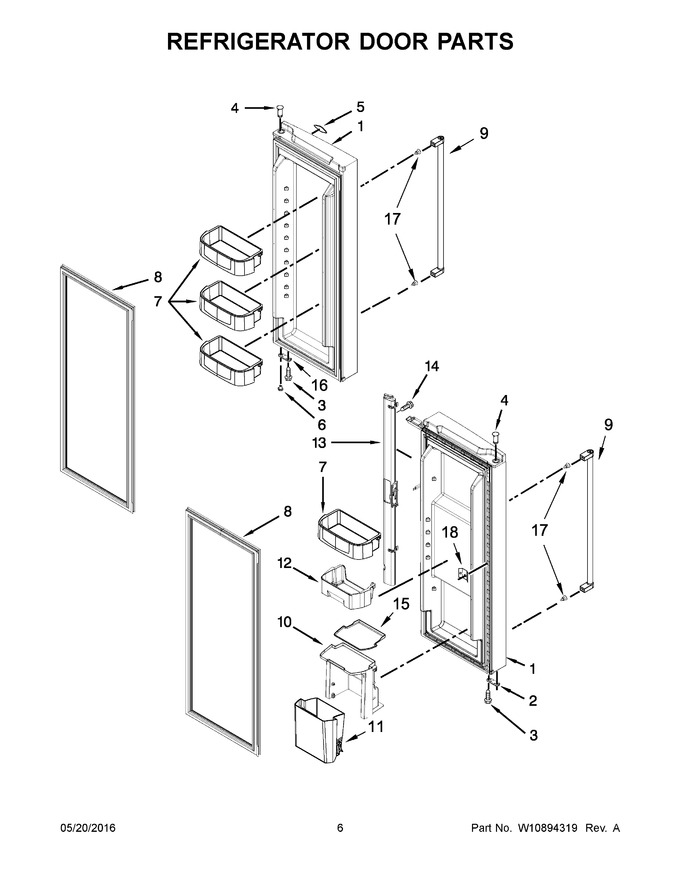

04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10721544 | Refrigerator Door (includes #8) (left Hand (white)) (Replaces: W10721544) |
|
$ 919.70 | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 4 | W11544568 | Thimble, Top (white) (Replaces: W10366270) |
|
Immediately | $ 12.56 | ||||
| 5 | W10876598 | Nameplate (grey) (Replaces: W10765861) |
|
Immediately | $ 65.54 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 6.80 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 69.93 | ||||
| 8 | W10460612 | Gasket, Refrigerator Door (beige) (Replaces: W10353189) |
|
Immediately | $ 281.09 | ||||
| 9 | W11483532 | Handle Assembly (stainless) (Replaces: W10704121) |
|
Immediately | $ 160.21 | ||||
| 10 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 93.42 | |||||
| 11 | WPW10411219 | Bin, Fresh & Ready (Replaces: W10411219) |
|
Immediately | $ 86.35 | ||||
| 12 | WPW10326335 | Bin, Shallow (Replaces: W10326335) |
|
Immediately | $ 58.31 | ||||
| 13 | WPW10624451 | Flipper Mullion Assembly (white) (Replaces: W10624451) |
|
Immediately | $ 119.34 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 15 | WPW10317192 | Bin, Door Mat (Replaces: W10317192) |
|
$ 78.59 | |||||
| 16 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 33.25 | ||||
| 17 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 18 | WP939101 | Screw Anchor (Replaces: 939101) |
|
$ 7.09 | |||||
| 13A | WPW10624450 | Flipper Mullion Assembly (grey) (Replaces: W10624450) |
|
Immediately | $ 214.00 | ||||
| 1A | LW10721540 | Refrigerator Door (includes #8) (right Hand (white)) (Replaces: W10721540) |
|
$ 915.34 | |||||
| 1B | LW10721548 | Refrigerator Door (includes #8) (left Hand (stainless)) (Replaces: W10721548) |
|
$ 1,106.77 | |||||
| 1C | LW10721542 | Refrigerator Door (includes #8) (right Hand (stainless)) (Replaces: W10721542) |
|
$ 1,170.02 | |||||
| 4A | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 11.44 | |||||
| 8A | WPW10460580 | Gasket, Refrigerator Door (grey) (Replaces: W10413468) |
|
Immediately | $ 241.88 |
