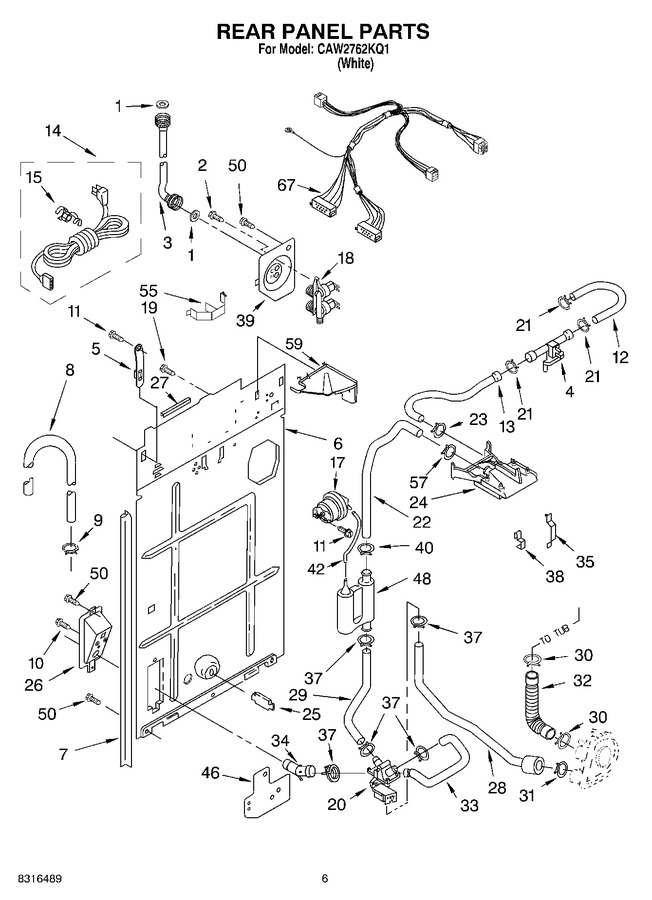

04 - Rear Panel Parts


05 - Agitator, Basket And Tub Parts


06 - Brake, Clutch, Gearcase, Motor And Pump Parts


07 - Machine Base Parts


08 - Wiring Harness Parts


09 - Brake And Drive Tube Parts


10 - Gearcase Parts


11 - Water System Parts


12 - Miscellaneous Parts - Optional Parts ( Not Included )


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 7.34
2	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
3	WP3949380		Hose, Water Inlet (2) (blue Coupler)   (Replaces: 3949380)				$ 33.85
3	WP3949381		Hose, Water Inlet (2) (red Coupler)   (Replaces: 3949381)				$ 45.09
4	3352282		Sensor-etc-inline				$ 66.68
5	WP8568314		Strap, Console (2)   (Replaces: 8318255)				$ 7.35
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 3354204)				$ 24.81
8	285666		Hose, Drain (9`- 9``) (not Included)   (Replaces: 661577)			Immediately	$ 98.08
8	WP96743		Hose, Drain (4`)   (Replaces: 96743)				$ 95.47
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 57.55
9	WP371502		Clamp, Hose   (Replaces: 371507)				$ 11.08
10	3352299		Screw		Appelez-nous	-
11	WP3351614		Screw, 10-24 X 3/8   (Replaces: 3351614)			Immediately	$ 6.57
12	3363516		Hose, Sensor (upper)		Appelez-nous	-
13	3363509		Hose, Sensor (lower)		Appelez-nous	-
14	285928		Cord, Power   (Replaces: 3359548)				$ 123.90
15	3952821		Strain Relief, Power Cord To Rear Panel		Appelez-nous	-
17	3952709		Pressure Switch		Appelez-nous	-
18	285805		Valve, Water Mixing   (Replaces: 3955673)			Immediately	$ 49.57
19	WP3390631		Screw, 10-24 X 3/8 (2)   (Replaces: 62863)				$ 7.43
20	3358559		Valve, Two-way				$ 122.77
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.94
22	3358555		Hose, Air-dome To Vacuum Break		Appelez-nous	-
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.94
24	3358551		Break, Vacuum				$ 32.74
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.87
26	3976335		Bracket, Valve Mounting		Appelez-nous	-
27	303294		Edge Protector (2)		Appelez-nous	-
28	8314849		Hose, Pump To Two-way Valve		Appelez-nous	-
29	3358563		Hose/two-way Valve To Air Dome				$ 9.74
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.72
31	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 7.67
32	285871		Hose, Pump To Tub   (Replaces: 3951449)			Immediately	$ 26.09
33	3358564		Hose-two Way Valve/ To Drain				$ 10.22
34	3976337		Connector, Hose		Appelez-nous	-
35	8054658		Clip, Harness		Appelez-nous	-
37	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.93
38	8282518		Clip, Harness		Appelez-nous	-
39	285930		Plate, Mixing Valve   (Replaces: 8541624)				$ 70.46
40	3363365		Clamp, Hose				$ 10.16
42	WP353244		Hose, Pressure Switch   (Replaces: 8316037)			Immediately	$ 78.00
46	3948552		Shield, Valve				$ 7.81
48	3948812		Air Dome		Appelez-nous	-
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.43
55	8055003		Clip, Harness & Pressure Hose				$ 36.24
57	3363365		Clamp, Hose   (Replaces: 3358557)				$ 10.16
59	8539874		Shield, Suds				$ 7.01
67	3954900		Harness, Timer		Appelez-nous	-
