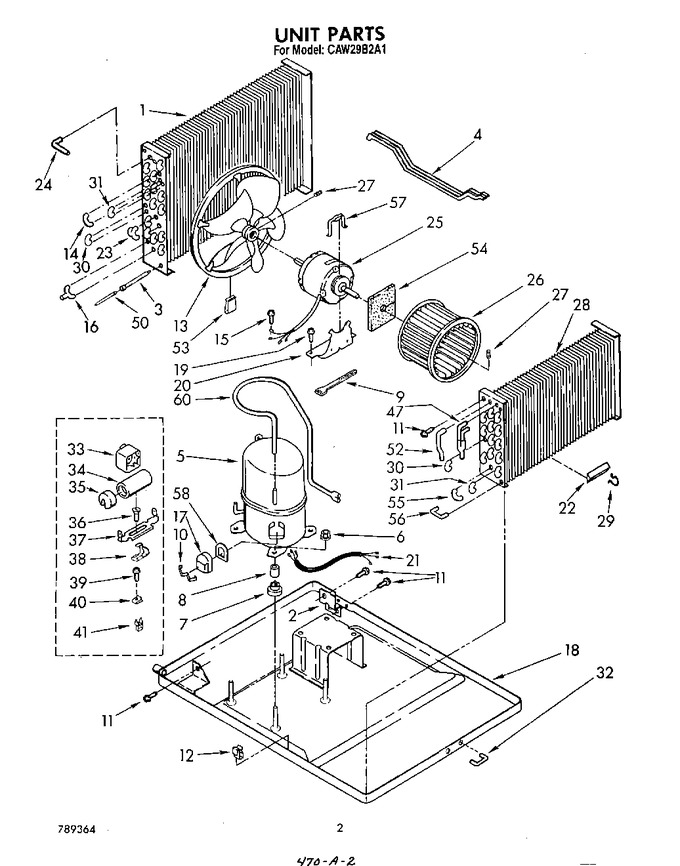

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	993318		Condenser		Appelez-nous	-
2	856028		Support, Condenser (rs)		Appelez-nous	-
3	484230		Tube & Strainer (includes Illus. 50)		Appelez-nous	-
4	993319		Tube, Restrictor (3)		Appelez-nous	-
5	484161		Compressor		Appelez-nous	-
6	858121		Locknut (4)		Appelez-nous	-
7	475041		Grommet (4)		Appelez-nous	-
8	858116		Sleeve (4)		Appelez-nous	-
9	WPW10339879		Tie, Cable (2)   (Replaces: 857547)				$ 7.47
10	475062		Retainer, Cover		Appelez-nous	-
11	WP489069		Screw   (Replaces: 488480)			Immediately	$ 7.56
11	WP308685		Screw, Repair   (Replaces: 488861)			Immediately	$ 7.08
12	642684		Clamp (2)		Appelez-nous	-
13	646247		Blade, Fan		Appelez-nous	-
14	855644		Bend, Return		Appelez-nous	-
15	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 7.97
16	476078		Bend, 3-way Return (2)		Appelez-nous	-
17	475061		Cover, Terminal		Appelez-nous	-
18	856498		Base, Assembly		Appelez-nous	-
19	488311		Screw, 1/4-20 X 5/8		Appelez-nous	-
20	471719		Cradle, Motor (2)		Appelez-nous	-
21	484136		Harness, Wiring (compressor Service)		Appelez-nous	-
22	472046		Anticipator		Appelez-nous	-
23	49493		Bend, Return 3-way		Appelez-nous	-
24	649800		Tube, Connect		Appelez-nous	-
25	948544		Motor, Fan		Appelez-nous	-
26	856953		Wheel, Blower		Appelez-nous	-
27	595085		Screw, 5/16 X 1/4		Appelez-nous	-
28	855436		Evaporator		Appelez-nous	-
29	472047		Clip (2)		Appelez-nous	-
30	855199		Bend, Condenser (32) Evaporator (30)		Appelez-nous	-
31	854624		Bend, Condenser (5) Evaporator (1)		Appelez-nous	-
32	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
33	484177		Relay		Appelez-nous	-
34	47406		Xcapacitor		Appelez-nous	-
35	791868		Xcap, Capacitor		Appelez-nous	-
36	487880		Xscrew, 10 X 5/8 (2)		Appelez-nous	-
37	35564		Xbracket				$ 262.34
38	90654		Multiplier, Terminal		Appelez-nous	-
39	WP965173		Xscrew, 8 X 3/8   (Replaces: 487869)			Immediately	$ 10.68
40	488660		Xspeed Nut   (Replaces: 486197)		Appelez-nous	-
41	45571		Xterminal, Flag (8)		Appelez-nous	-
47	649806		Tube, Outlet Assembly		Appelez-nous	-
50	49599		Strainer		Appelez-nous	-
52	649809		Tube, Outlet (rear)		Appelez-nous	-
53	485334		Clip, Balancing		Appelez-nous	-
54	476719		Seal, Shaft		Appelez-nous	-
55	854625		Bend, Return		Appelez-nous	-
56	854626		Bend, Return		Appelez-nous	-
57	WPY015825		Clip, Motor (2)   (Replaces: 49633)				$ 22.65
58	475063		Gasket Terminal Cover		Appelez-nous	-
60	484220		Start Assist Kit		Appelez-nous	-
60	978030		Valve, Access (3/4``)				$ 123.53
60	485883		Kit, Compressor Start		Appelez-nous	-
60	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
60	642923		Tube, Suction		Appelez-nous	-
60	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
60	505168		No Drip Tape (for Sweating Tubes)		Appelez-nous	-
60	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
60	978026		Valve, Access (5/16``)			Immediately	$ 121.04
60	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
60	978028		Valve, Access (1/2)		Appelez-nous	-
60	978029		Valve Access (5/8``)				$ 93.85
