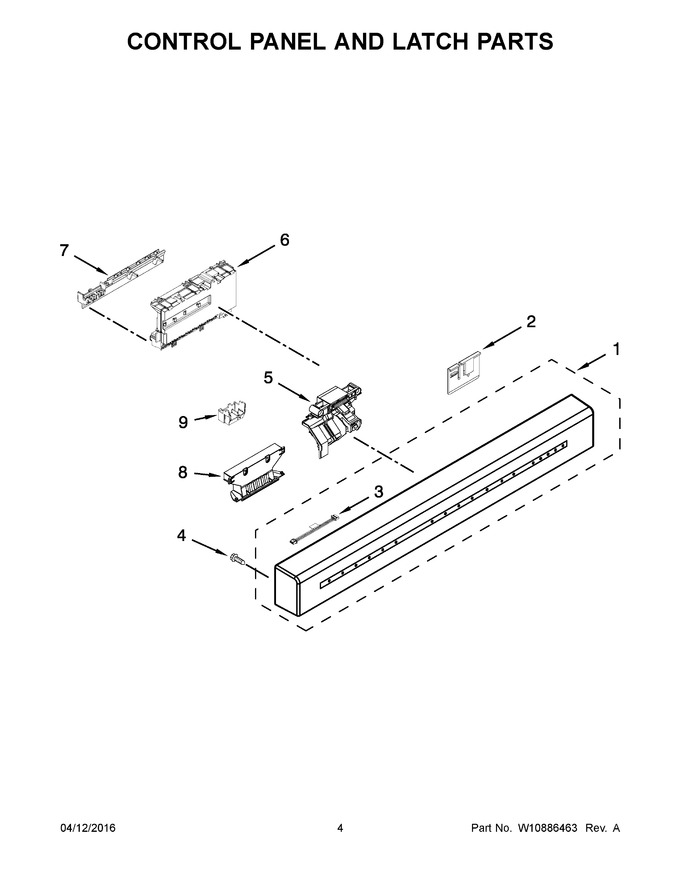

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10891665		Console Assembly (includes Insert) (black)   (Replaces: W10807895)				$ 344.30
2	W11256107		Clip, Control   (Replaces: W10195237)				$ 20.94
3	W10792164		Jumper, 4 Wire				$ 21.34
4	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 6.80
5	WPW10653840		Latch Assembly (includes Switch)   (Replaces: W10653840)			Immediately	$ 30.76
6	W10875442		Control, Electronic   (Replaces: W10794523)				$ 283.45
7	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 27.50
8	W10537379		Handle (black)				$ 24.77
9	W10783730		Box, Connector   (Replaces: W10756253)				$ 28.27
1A	W10807896		Console Assembly (includes Insert) (white)		Appelez-nous	-
1B	W10891912		Console Assembly (includes Insert) (stainless)   (Replaces: W10807894)				$ 343.31
