SELECT A DIAGRAM
01 - Cover Sheet

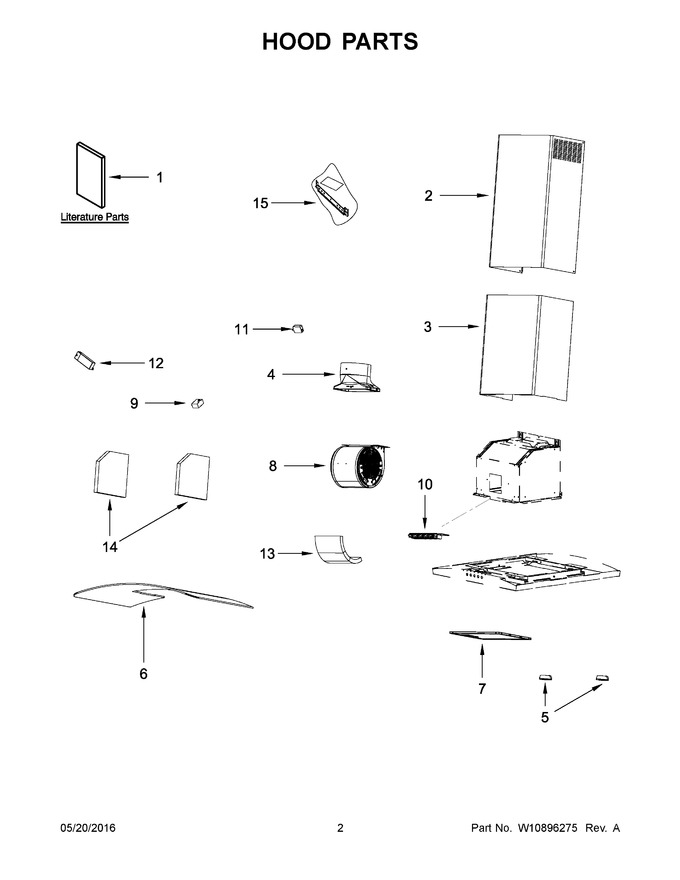

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10836369 | Use And Care Guide |
|
- | |||||
| 2 | W11590865 | Chimney, Upper (Replaces: W10313840) |
|
$ 350.33 | |||||
| 3 | W11590865 | Chimney, Lower (Replaces: W10313839) |
|
$ 350.33 | |||||
| 4 | W10847841 | Damper, Hood (plastic) (Replaces: W10592040) |
|
$ 147.46 | |||||
| 5 | W11794237 | Light, Led (Replaces: W10795142) |
|
Immediately | $ 76.20 | ||||
| 6 | WPW10313843 | Glass (30" Model Only) (Replaces: W10313843) |
|
Immediately | $ 304.98 | ||||
| 7 | W10169961A | Filter, Grease (Replaces: W10870878) |
|
Immediately | $ 39.53 | ||||
| 8 | W10894803 | Motor, Fan |
|
$ 338.56 | |||||
| 9 | W11328673 | Capacitor (Replaces: W10735734) |
|
Immediately | $ 59.00 | ||||
| 10 | W10895848 | Control, Electronic (Replaces: W10894876) |
|
$ 310.73 | |||||
| 11 | W10894800 | Filter, Noise |
|
- | |||||
| 12 | W10895844 | Transformer (Replaces: W10894801) |
|
$ 219.84 | |||||
| 13 | W11688852 | Insulation, Motor (Replaces: W10894814) |
|
$ 71.89 | |||||
| 14 | W11848867 | Insulation, Side (Replaces: W10717244) |
|
$ 81.32 | |||||
| 15 | W10894816 | Hardware, Installation |
|
$ 92.24 | |||||
| 6A | WPW10313844 | Glass (36" Model Only) (Replaces: W10313844) |
|
$ 318.10 | |||||
| NI | W10894817 | Accessories, Kit, Universal Screw |
|
$ 80.40 | |||||
| NI | W11430939 | Accessories, Kit, Recirculation (for Non-vented Installations Only) (Replaces: W10294733) |
|
$ 137.92 | |||||
| NI | W10412939 | Accessories, Kit, Charcoal Filter (for Non-vented Installations Only) |
|
Immediately | $ 70.33 | ||||
| NI | W10446915 | Accessories, Kit, 6" Makeup Air |
|
$ 316.52 |
