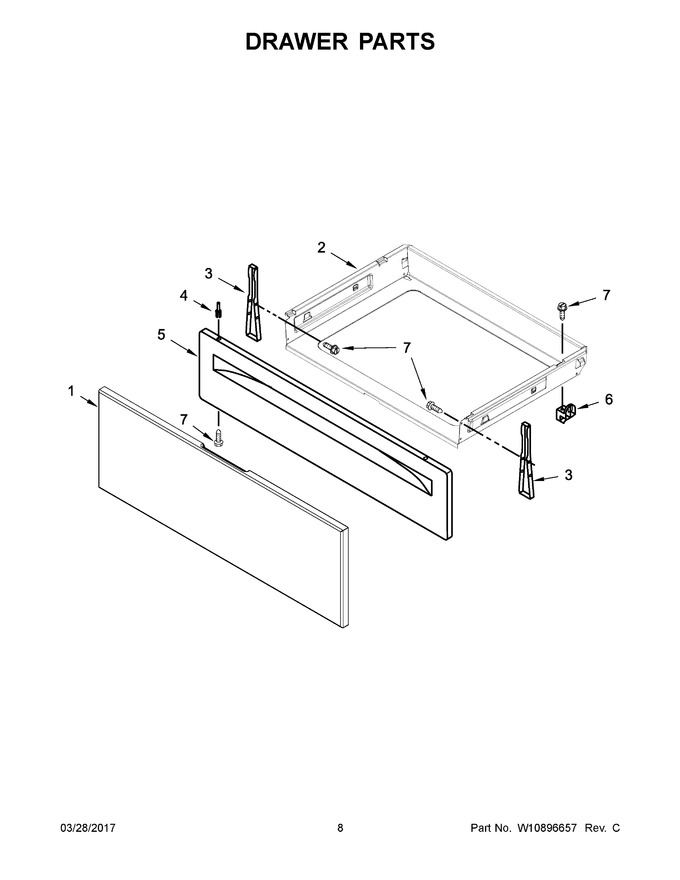

05 - Drawer Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11811322 | Panel, Front (stainless) (Replaces: W10330069) |
|
Immediately | $ 145.34 | ||||
| 2 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 124.34 | ||||
| 3 | W11759228 | Bracket, Drawer Mounting (stainless Model) (Replaces: W10462909) |
|
$ 25.44 | |||||
| 3 | W10462911 | Bracket, Drawer Mounting (black And White Models) |
|
- | |||||
| 4 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 9.96 | ||||
| 5 | W11230486 | Panel, Front (white) (Replaces: 8053336) |
|
$ 190.34 | |||||
| 6 | W10807828 | Glide, Drawer Rear (Replaces: W10674708) |
|
Immediately | $ 17.52 | ||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 4A | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 10.08 | ||||
| 5A | W11230490 | Panel, Front (black) (Replaces: 8053338) |
|
$ 190.43 |
