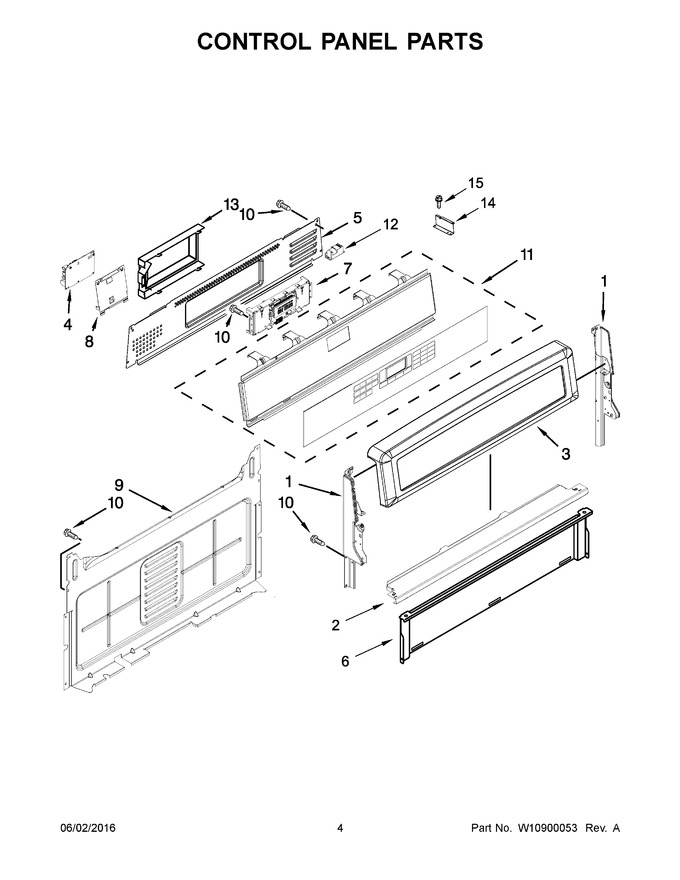

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | W10097310 | Console (stainless) |
|
$ 116.84 | |||||
| 4 | WPW10511278 | Module, Spark Dsi (Replaces: W10511278) |
|
Immediately | $ 317.01 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 116.01 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 96.02 | |||||
| 7 | WPW10340325 | Control, Mrc (Replaces: W10340325) |
|
$ 424.81 | |||||
| 8 | W10167573 | Bracket, Gas |
|
- | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 11 | W10655875 | Assembly, Active Overlay (stainless) |
|
$ 344.76 | |||||
| 12 | WPW10475149 | Module, Spark (5+0) (Replaces: W10475149) |
|
Immediately | $ 195.52 | ||||
| 13 | W10158780 | Cover, Fan |
|
$ 106.63 | |||||
| 14 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 15 | W10674068 | Screw |
|
$ 21.95 | |||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
Immediately | $ 40.65 |
