01 - Cover Sheet
02 - Cabinet Parts

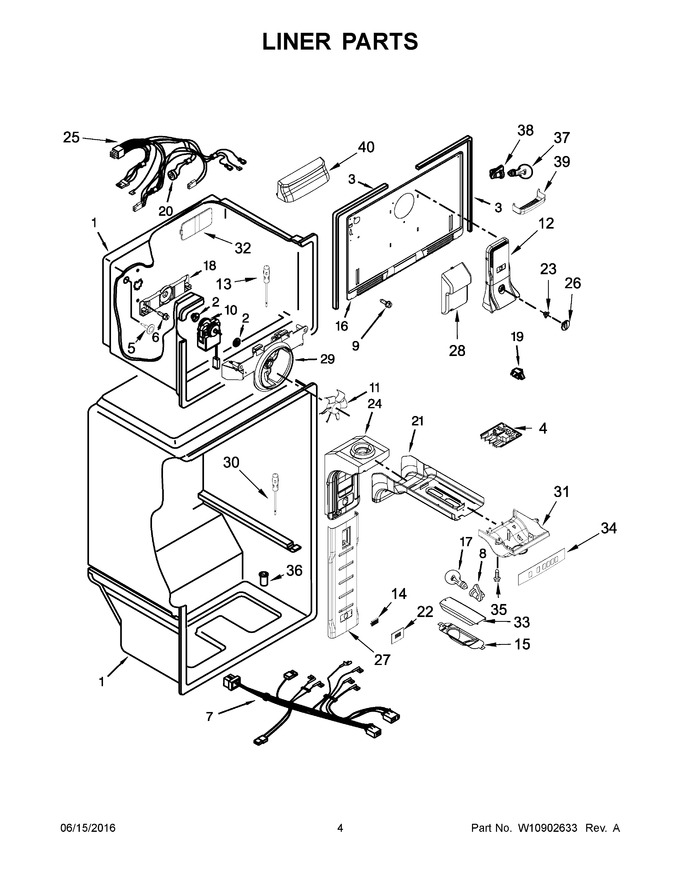

03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254360) |
|
$ 25.31 | |||||
| 4 | W11443921 | Control, User Interface (Replaces: W10880270) |
|
$ 150.02 | |||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 7.23 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 7 | W11441783 | Wire Assembly, Control Box (Replaces: W10878977) |
|
$ 122.68 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 9 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 9.30 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 88.26 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 96.85 | ||||
| 12 | W11126274 | Air Tower Assembly, Fc (Replaces: W10654834) |
|
$ 154.80 | |||||
| 13 | WPW10383615 | Thermistor, Freezer Evaporator (Replaces: W10383615) |
|
Immediately | $ 46.12 | ||||
| 14 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 12.91 | ||||
| 15 | W10300161 | Shield, Light |
|
Immediately | $ 86.96 | ||||
| 16 | W10617507 | Cover, Evaporator |
|
$ 196.61 | |||||
| 17 | W11216993 | Lamp, Led (Replaces: W10820003) |
|
Immediately | $ 47.21 | ||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 67.90 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 20 | N/P | Bi-metal Defrost (not Serviced) |
|
- | |||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 102.92 | |||||
| 22 | WPW10330850 | Grille, Air Filter Bottom (Replaces: W10330850) |
|
$ 33.80 | |||||
| 23 | W11206112 | Baffle, Air Manual (Replaces: W10662269) |
|
$ 76.99 | |||||
| 24 | W10904684 | Multiflow Assembly (Replaces: W10885143) |
|
$ 177.06 | |||||
| 25 | WPW10487766 | Assembly, Freezer Wire (Replaces: W10487766) |
|
Immediately | $ 73.28 | ||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 82.67 | |||||
| 27 | W10705785 | Cover, Air Filter |
|
$ 88.08 | |||||
| 28 | WPW10339203 | Cover, Water Tube (Replaces: W10716791) |
|
$ 6.80 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 29.22 | ||||
| 30 | WPW10384183 | Thermistor, Refrigerator Compartment (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 31 | W10841668 | Control Box |
|
$ 91.99 | |||||
| 32 | W10336009 | Cup, Screw |
|
$ 69.66 | |||||
| 33 | WPW10348614 | Cover, Light (Replaces: W10348614) |
|
$ 106.16 | |||||
| 34 | W10871749 | Overlay |
|
$ 17.19 | |||||
| 35 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.57 | |||||
| 36 | WP2210509 | Valve, Release (Replaces: 2210509) |
|
$ 89.24 | |||||
| 37 | W11518235 | Lamp, Led (Replaces: W10574850) |
|
Immediately | $ 26.36 | ||||
| 38 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 32.24 | ||||
| 39 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 85.81 | ||||
| 40 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 81.96 |
