SELECT A DIAGRAM
01 - Cover Sheet

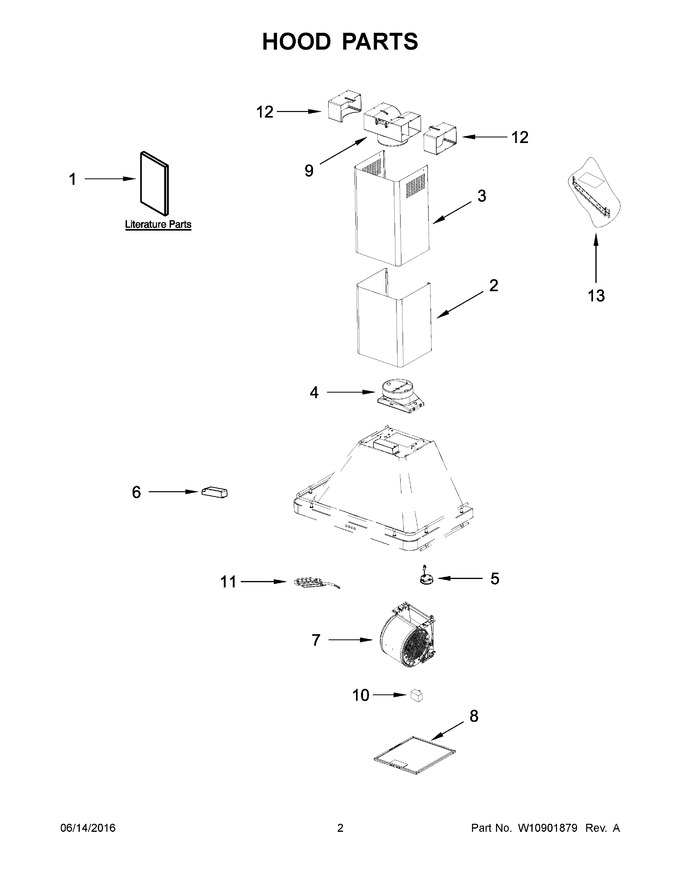

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10836384 | Use And Care Guide |
|
- | |||||
| 2 | W10427639 | Cover, Lower Duct |
|
- | |||||
| 3 | W10427640 | Cover, Upper Duct |
|
$ 297.79 | |||||
| 4 | W10847841 | Damper, Hood (plastic) (Replaces: W10592040) |
|
$ 147.46 | |||||
| 5 | W11794237 | Light, Led (Replaces: W10795142) |
|
Immediately | $ 76.20 | ||||
| 6 | W10901190 | Driver, Led (Replaces: W10900830) |
|
$ 212.41 | |||||
| 7 | W10900832 | Motor, Fan |
|
$ 368.56 | |||||
| 8 | W10169961A | Filter, Grease (Replaces: W10870878) |
|
Immediately | $ 39.53 | ||||
| 9 | W10427643 | Duct-air Diverter |
|
- | |||||
| 10 | W11328673 | Capacitor (Replaces: W10735734) |
|
Immediately | $ 59.00 | ||||
| 11 | W11328755 | Control, Electronic (Replaces: W10900835) |
|
Immediately | $ 289.09 | ||||
| 12 | W10427641 | Extension |
|
- | |||||
| 13 | W10900836 | Hardware, Installation |
|
- | |||||
| NI | W10894817 | Accessories, Kit, Universal Screw |
|
$ 80.40 | |||||
| NI | W10412939 | Accessories, Kit, Charcoal Filter (for Non-vented Installations Only) |
|
Immediately | $ 70.33 |
