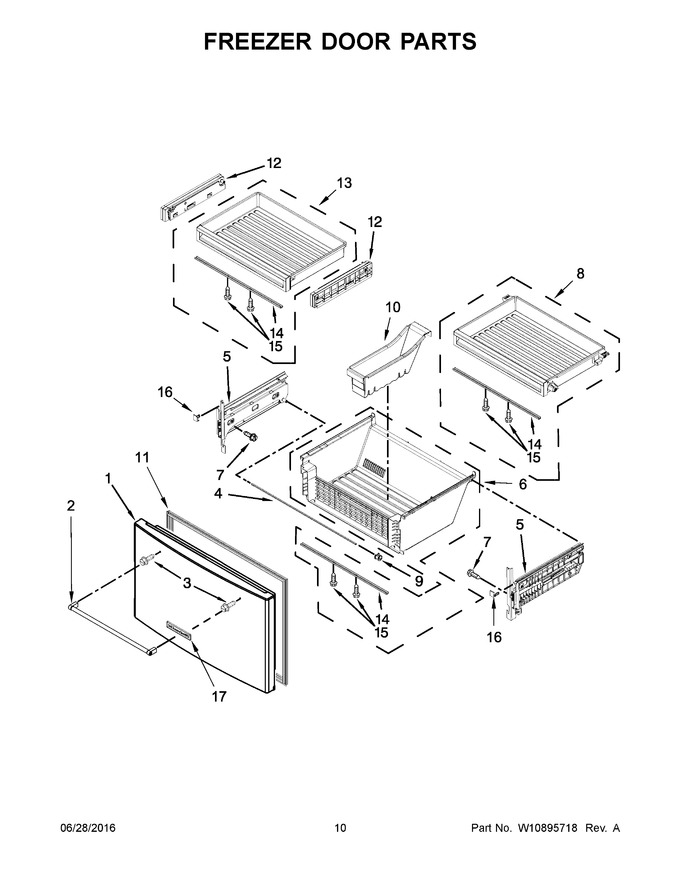

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10919664		Freezer Door (black Stainless)   (Replaces: W10881015)		Appelez-nous	-
2	W11499276		Handle, Door (stainless)   (Replaces: W10736970)			Immediately	$ 166.86
3	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
4	WPW10503522		Shaft   (Replaces: W10503522)				$ 88.29
5	W11668672		Assembly, Bracket (left Hand)   (Replaces: W10795771)			Immediately	$ 479.00
6	W10594052		Bin, Lower			Immediately	$ 244.13
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 7.90
8	W11238213		Assembly, Center Pan   (Replaces: W10757964)				$ 140.57
9	W10852685		Clip, Shaft   (Replaces: W10709748)				$ 10.25
10	W10562492		Divider, Lower				$ 97.39
11	W10407215		Gasket, Door (black)   (Replaces: W10248748)				$ 286.19
12	W11131390		Assembly, Adapter (left Hand)   (Replaces: W10619221)				$ 95.47
13	W11393136		Assembly Upper Pan   (Replaces: W10757715)			Immediately	$ 123.22
14	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 139.59
15	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 7.50
16	W10585151		Stop, Pan (left Hand)				$ 77.43
17	W10876598		Nameplate (grey)   (Replaces: W10765861)			Immediately	$ 65.54
12A	W11161915		Assembly, Adapter (right Hand)   (Replaces: W10619220)			Immediately	$ 99.25
16A	W10585150		Stop, Pan (right Hand)				$ 77.48
5A	W11668672		Assembly, Bracket (right Hand)   (Replaces: W10795769)			Immediately	$ 479.00
