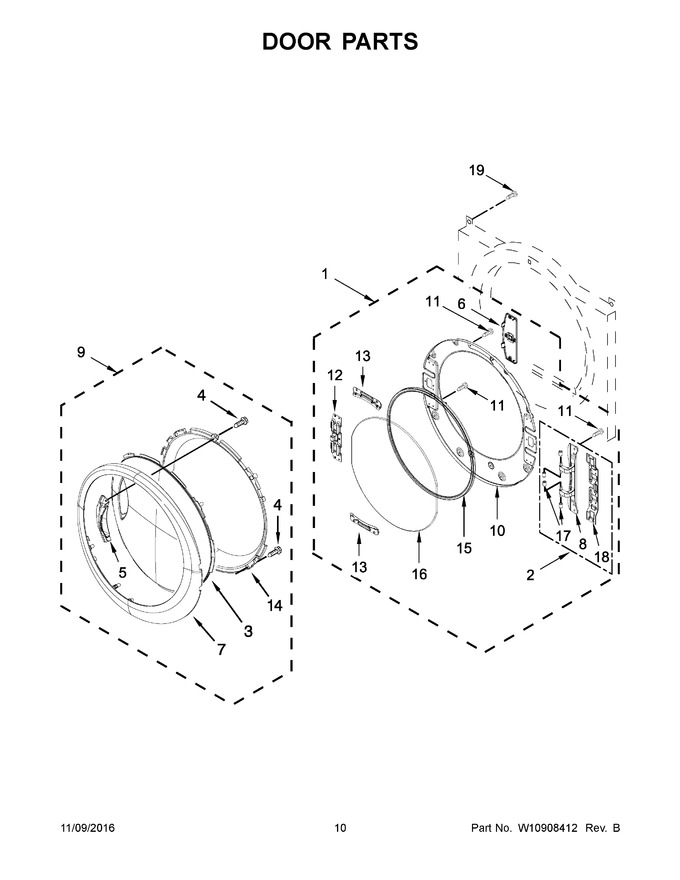

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10811034 | Assembly, Inner Door |
|
$ 94.41 | |||||
| 2 | W11051465 | Assembly, Door Hinge (Replaces: W10208414) |
|
Immediately | $ 106.24 | ||||
| 3 | W10875838 | Screen, Door (Replaces: W10733166) |
|
- | |||||
| 4 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.53 | |||||
| 5 | W10733169 | Handle, Door |
|
$ 77.67 | |||||
| 6 | W10772469 | Cover, Door Catch |
|
$ 76.83 | |||||
| 7 | W10875840 | Door, Trim Ring (Replaces: W10733172) |
|
- | |||||
| 8 | WPW10208415 | Hinge, Base (Replaces: W10208415) |
|
Immediately | $ 125.99 | ||||
| 9 | W11168739 | Chrome Shadow (Replaces: W10808338) |
|
$ 378.06 | |||||
| 10 | W10267837 | Door, Inner |
|
$ 188.98 | |||||
| 11 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 12 | WPW10208254 | Assembly, Door Catch (Replaces: W10208254) |
|
$ 76.81 | |||||
| 13 | W10208252 | Bracket, Glass |
|
- | |||||
| 14 | W11168739 | Door, Intermediate (Replaces: W10733173) |
|
$ 378.06 | |||||
| 15 | W11310035 | Seal, Glass (Replaces: W10329710) |
|
Immediately | $ 88.61 | ||||
| 16 | W10823368 | Glass, Door |
|
$ 283.24 | |||||
| 17 | WPW10208398 | Cap, Hinge (Replaces: W10208398) |
|
Immediately | $ 20.30 | ||||
| 18 | WPW10208419 | Plate, Hinge Retainer (Replaces: W10208419) |
|
Immediately | $ 77.35 | ||||
| 19 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 6.80 |
