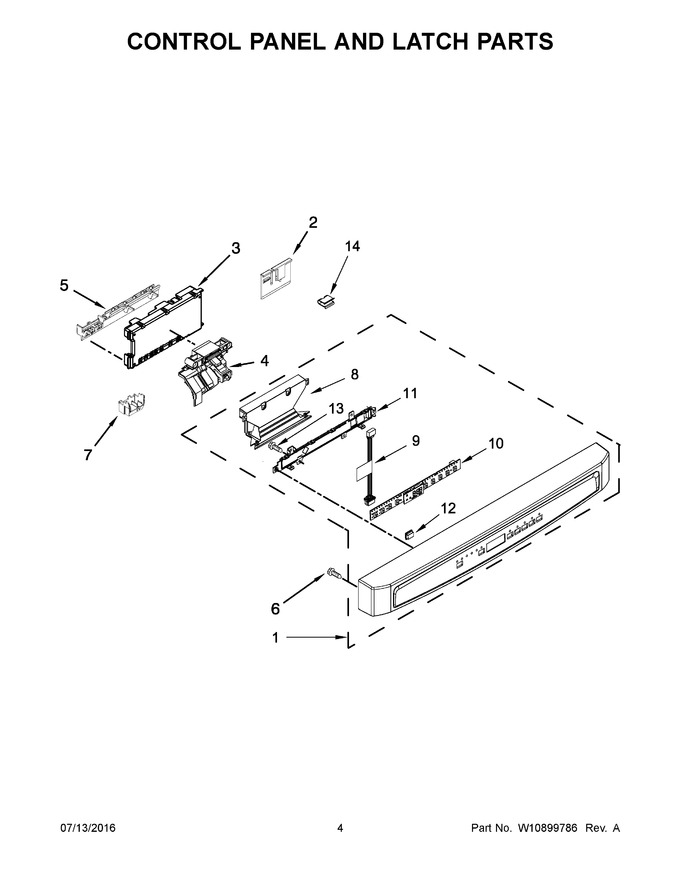

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10898448 | Console Assembly (stainless) (Replaces: W10839468) |
|
$ 317.24 | |||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 20.94 | |||||
| 3 | W10906430 | Control, Electronic (Replaces: W10838694) |
|
Immediately | $ 300.65 | ||||
| 4 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10653840) |
|
Immediately | $ 30.76 | ||||
| 5 | W11305293 | Brace, Connector (Replaces: W10825369) |
|
Immediately | $ 250.03 | ||||
| 6 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 7.38 | ||||
| 7 | W11305293 | Box, Connector (Replaces: W10825638) |
|
Immediately | $ 250.03 | ||||
| 8 | W10562090 | Handle Pocket (grey) |
|
$ 34.78 | |||||
| 9 | W11028004 | Jumper, 4-wire (Replaces: W10566903) |
|
$ 20.13 | |||||
| 10 | W10898450 | User Interface (Replaces: W10839435) |
|
Immediately | $ 338.94 | ||||
| 11 | W10636690 | Cover, User Interface |
|
$ 30.58 | |||||
| 12 | W10682421 | Button, Console (apollo Grey) |
|
$ 21.50 | |||||
| 13 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 6.80 | ||||
| 14 | W10815836 | Clip, Panel (Replaces: W10692204) |
|
$ 7.43 |
