View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

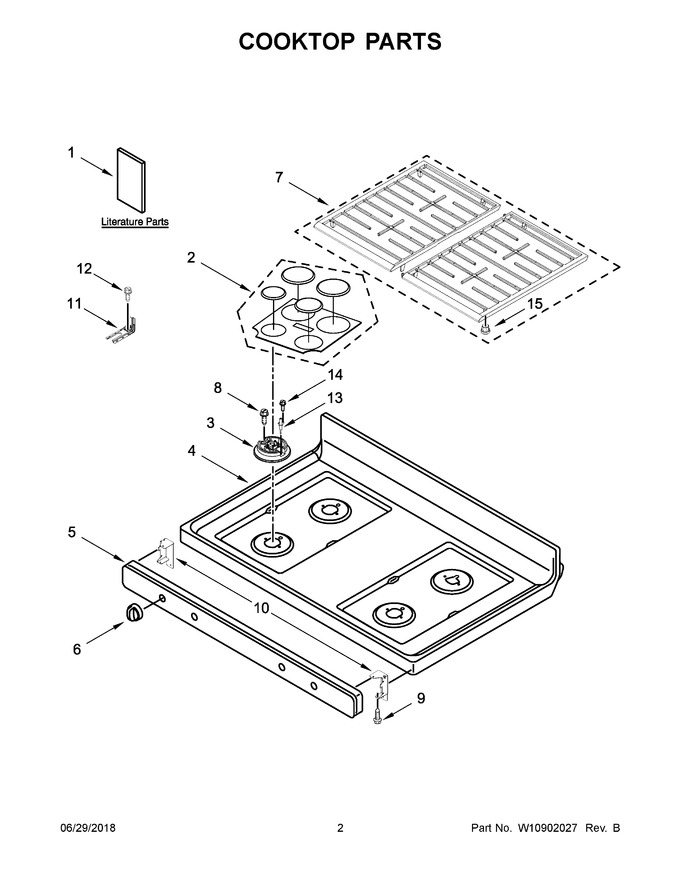

02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11122558 | Instructions, Installation |
|
- | |||||
| 2 | WPW10183375 | Set, Burner Cap (black) (Replaces: W10183375) |
|
$ 139.45 | |||||
| 3 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 101.22 | |||||
| 4 | W10366732 | Cooktop (black) |
|
- | |||||
| 5 | W10444447 | Panel, Manifold (black) |
|
- | |||||
| 6 | W10819917 | Knob, Control (black) (Replaces: W10676218) |
|
Immediately | $ 21.20 | ||||
| 7 | W11394363 | Set, Grate Burner (black) (Replaces: W10695047) |
|
$ 332.15 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.70 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.16 | ||||
| 10 | 8523249 | Bracket, Manifold |
|
- | |||||
| 11 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 12 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 13 | WPW10515459 | Electrode (Replaces: W11194809) |
|
Immediately | $ 39.39 | ||||
| 14 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 15 | W10919249 | Grate, Bumper (Replaces: W10465081) |
|
Immediately | $ 11.86 | ||||
| 1A | W11122569 | Guide, Use & Care |
|
- | |||||
| 1B | W10538793 | Sheet, Tech (english) |
|
- | |||||
| 3A | WPW10515454 | Assembly, Burner (9.5k) (left Rear) (Replaces: W10515454) |
|
$ 104.17 | |||||
| 3B | WPW10515453 | Assembly, Burner (6k) (right Rear) (Replaces: W10515453) |
|
$ 89.36 | |||||
| 4A | W10366731 | Cooktop (white) |
|
- | |||||
| 4B | W10771754 | Cooktop (biscuit) (Replaces: W10686142) |
|
$ 360.26 | |||||
| 5A | W10444446 | Panel, Manifold (white) |
|
$ 263.22 | |||||
| 5B | W10444448 | Panel, Manifold (biscuit) |
|
- | |||||
| 6A | W10909673 | Knob, Control (white) (Replaces: W10676219) |
|
- | |||||
| 6B | W10676220 | Knob, Control (biscuit) |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 194.90 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10797422 | Harness, Main |
|
- | |||||
| NI | W10809927 | Harness, Cooktop |
|
$ 144.81 |
