01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

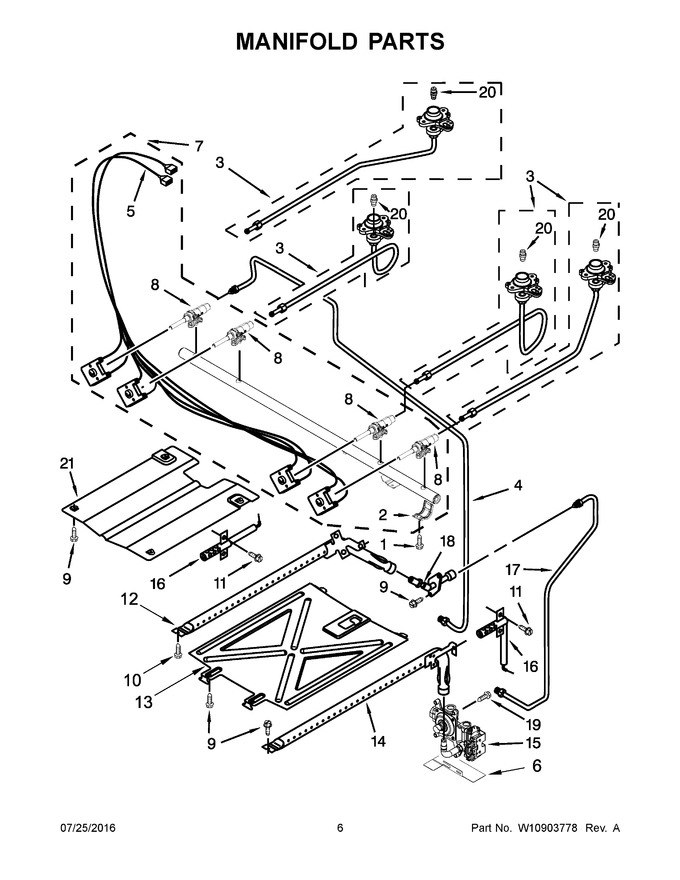

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.59 | |||||
| 2 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 20.48 | |||||
| 3 | W11197500 | Assembly, Orifice Holder (15k) (left Front) (Replaces: W10473936) |
|
$ 100.67 | |||||
| 4 | W11680399 | Tubing (manifold To Regulator) (Replaces: W10215439) |
|
$ 143.42 | |||||
| 5 | W11256561 | Harness, Switch (Replaces: W10812380) |
|
$ 171.27 | |||||
| 6 | W10224921 | Bracket, Aegis |
|
- | |||||
| 7 | W10812382 | Assembly, Manifold |
|
$ 336.45 | |||||
| 8 | WPW10279615 | Valve, Gas (left Front & Right Front) (Replaces: W10279615) |
|
$ 233.02 | |||||
| 9 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 10 | 3196265 | Screw |
|
- | |||||
| 11 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
Immediately | $ 215.42 | ||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 228.17 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 203.46 | |||||
| 15 | WPW10602001 | Regulator (Replaces: W10602001) |
|
Immediately | $ 306.87 | ||||
| 16 | WP8054129 | Ignitor (electrode, Broil) (Replaces: 8054129) |
|
Immediately | $ 123.43 | ||||
| 17 | W10420040 | Tube, Broiler Supply |
|
$ 175.09 | |||||
| 18 | W10592836 | Fitting, Broiler |
|
$ 97.43 | |||||
| 19 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 20 | WPW10347414 | Orifice (15k) (left Front & Right Front) (Replaces: W10347414) |
|
$ 81.45 | |||||
| 21 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 16A | WP9758079 | Ignitor (electrode, Bake) (Replaces: 9758079) |
|
Immediately | $ 43.26 | ||||
| 20A | WPW10170508 | Orifice (9.5k) (left Rear) (Replaces: W10170508) |
|
$ 85.69 | |||||
| 20B | WPW10170506 | Orifice (5k) (right Rear) (Replaces: W10170506) |
|
$ 88.07 | |||||
| 3A | W11700294 | Assembly, Orifice Holder (9.5k) (left Rear) (Replaces: W10473932) |
|
$ 75.79 | |||||
| 3B | W11234417 | Assembly, Orifice Holder (15k) (right Front) (Replaces: W10474166) |
|
$ 90.12 | |||||
| 3C | W11700304 | Assembly, Orifice Holder (5k) (right Rear) (Replaces: W10474162) |
|
$ 73.01 | |||||
| 8A | WPW10279614 | Valve, Gas (left Rear) (Replaces: W10279614) |
|
$ 251.83 | |||||
| 8B | WPW10247744 | Valve, Gas (right Rear) (Replaces: W10247744) |
|
$ 252.11 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10170534 | Kit, Lp Conversion (Replaces: W10170534) |
|
$ 99.80 | |||||
| NI | W11126051 | Kit, Lp Bake And Broil (Replaces: W10566537) |
|
$ 116.14 |
