SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Upper Oven Door Parts


05 - Lower Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts

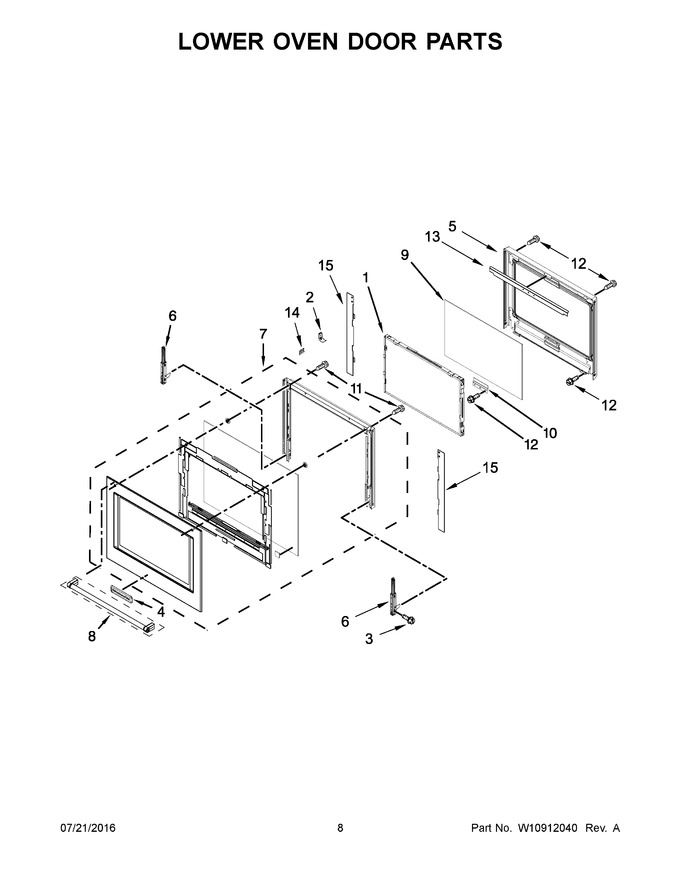

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10347596		Assembly, Window Pack   (Replaces: W10347596)			Immediately	$ 290.75
2	W10812024		Spring, Door Glass Fixation   (Replaces: W10284285)				$ 149.18
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 7.36
4	W10909682		Badge (grey)   (Replaces: W10518672)			Immediately	$ 68.58
5	WPW10709147		Assembly, Liner   (Replaces: W10709147)				$ 330.02
6	W10825778		Hinge, Door   (Replaces: W10639069)			Immediately	$ 101.57
7	W11354841		Assembly, Door (black)   (Replaces: W10615239)				$ 756.35
8	W11518518		Assembly, Handle (stainless)   (Replaces: W10541913)				$ 208.58
9	W10827059		Glass, Inner   (Replaces: W10678524)				$ 179.82
10	W10853628		Bracket, Glass   (Replaces: W10284297)				$ 147.47
11	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.44
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
13	W10669415		Shield, Door Liner				$ 62.60
14	W11025615		Clip, Spring Metal   (Replaces: W10653954)			Immediately	$ 158.53
15	W10687815		Extension, Side Rail (left)				$ 64.51
15A	W10687814		Extension, Side Rail (right)				$ 64.51
7A	W11354849		Assembly, Door (white)   (Replaces: W10615240)				$ 859.60
7B	W11354870		Assembly, Door (stainless)   (Replaces: W10615236)			Immediately	$ 866.83
7C	W11354880		Assembly, Door (black Stainless)   (Replaces: W10697972)				$ 995.32
