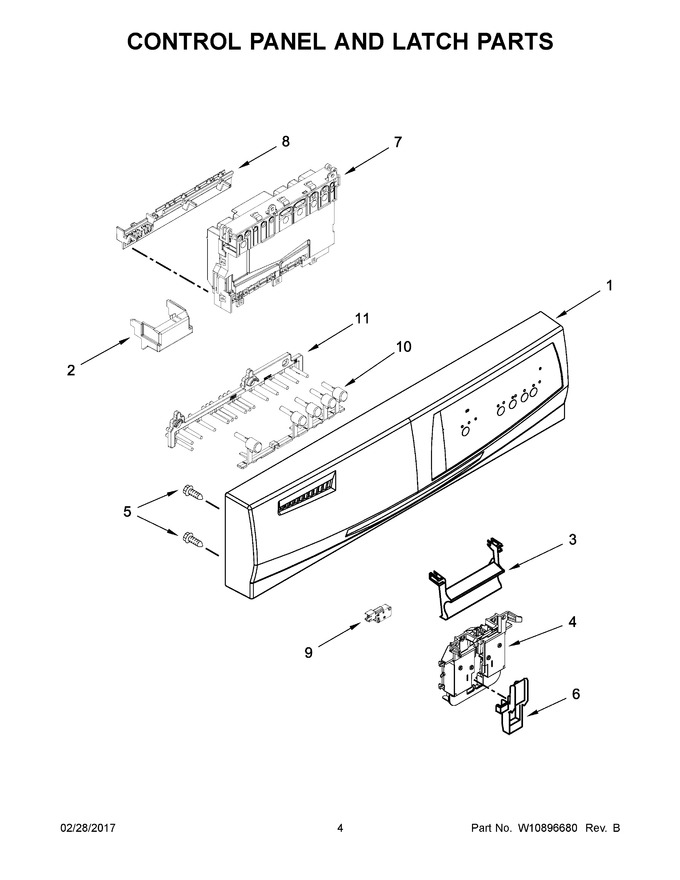

03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10531892		Console Assembly (includes Insert And Vent Gasket) (black)   (Replaces: W10867202)				$ 244.88
2	W11305293		Box, Connector   (Replaces: W10825638)			Immediately	$ 250.03
3	WP8534984		Handle, Latch (black)   (Replaces: 8534984)				$ 117.95
4	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 112.70
5	WPW10348413		Screw   (Replaces: W10348413)			Immediately	$ 7.57
6	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 100.16
7	W10906422		Control, Electronic   (Replaces: W10834731)			Immediately	$ 283.45
8	W11305293		Brace, Connector   (Replaces: W10825369)			Immediately	$ 250.03
9	WPW10274880		Switch, Door   (Replaces: W10274880)			Immediately	$ 74.60
10	WPW10274840		Button Tree   (Replaces: W10274840)				$ 17.78
11	W10854407		Light Pipe   (Replaces: W10274836)				$ 81.30
1A	W10531893		Console Assembly (includes Insert And Vent Gasket) (white)   (Replaces: W10867205)				$ 315.84
1B	W10531894		Console Assembly (includes Insert And Vent Gasket) (biscuit/bisque)   (Replaces: W10867203)				$ 244.52
3A	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 114.42
3B	8534986		Handle, Latch (biscuit/bisque)				$ 80.76
