01 - Cover Sheet


02 - Top And Cabinet Parts

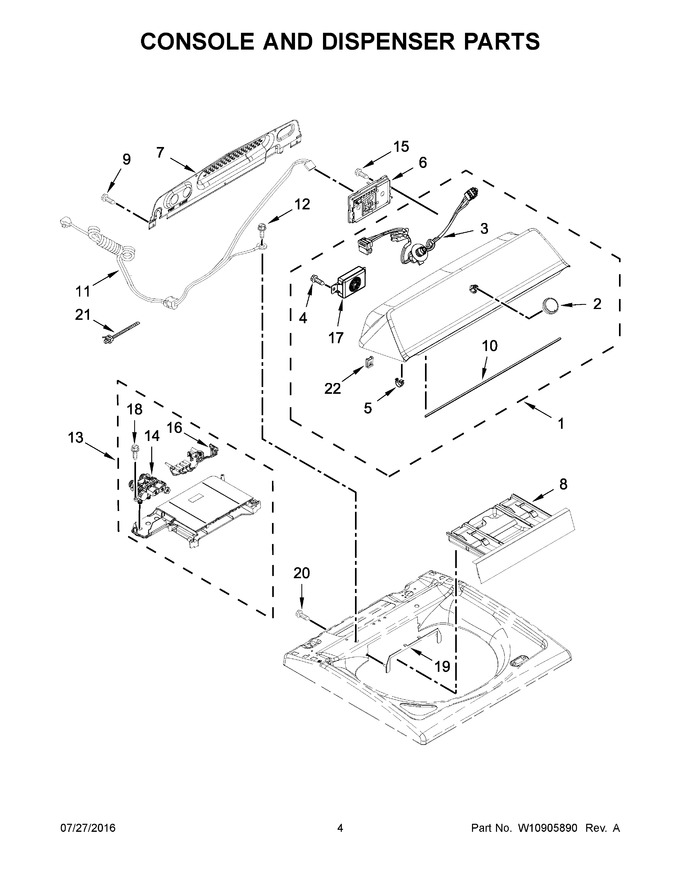

03 - Console And Dispenser Parts


04 - Motor, Basket And Tub Parts


05 - Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10914560		Console (white)   (Replaces: W10650405)				$ 606.63
2	W10853910		Assembly, Timer Knob (chrome)   (Replaces: W10727011)				$ 48.55
3	W11199207		Harness, Ui   (Replaces: W10771770)				$ 153.39
4	WP9740849		Screw   (Replaces: 9740849)				$ 6.57
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W10858074		Control Unit Assembly, Machine And Motor		Appelez-nous	-
7	W10611544		Panel, Console Rear Cover				$ 307.11
8	W10919352		Assembly, Dispenser Drawer (white)   (Replaces: W10794835)			Immediately	$ 103.23
9	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
10	W10618933		Seal, Console		Appelez-nous	-
11	W11096073		Cord, Power   (Replaces: W10770108)				$ 113.96
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	W11172234		Assembly, Housing   (Replaces: W10854688)			Immediately	$ 345.16
14	W11165546		Valve, Water Inlet   (Replaces: W10758828)			Immediately	$ 104.41
15	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
16	W11193817		Harness, Valve   (Replaces: W10849297)			Immediately	$ 167.72
17	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
18	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 7.92
19	W10601845		Assembly, Dispenser Bezel (white)				$ 38.33
20	W11700520		Screw   (Replaces: 3400061)				$ 12.85
21	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.18
22	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
19A	W10601876		Assembly, Dispenser Bezel (chrome Shadow)				$ 27.93
1A	W11226503		Console (chrome Shadow)   (Replaces: W10681982)				$ 641.14
8A	W11397976		Assembly, Dispenser Drawer (chrome Shadow)   (Replaces: W10795361)			Immediately	$ 95.67
