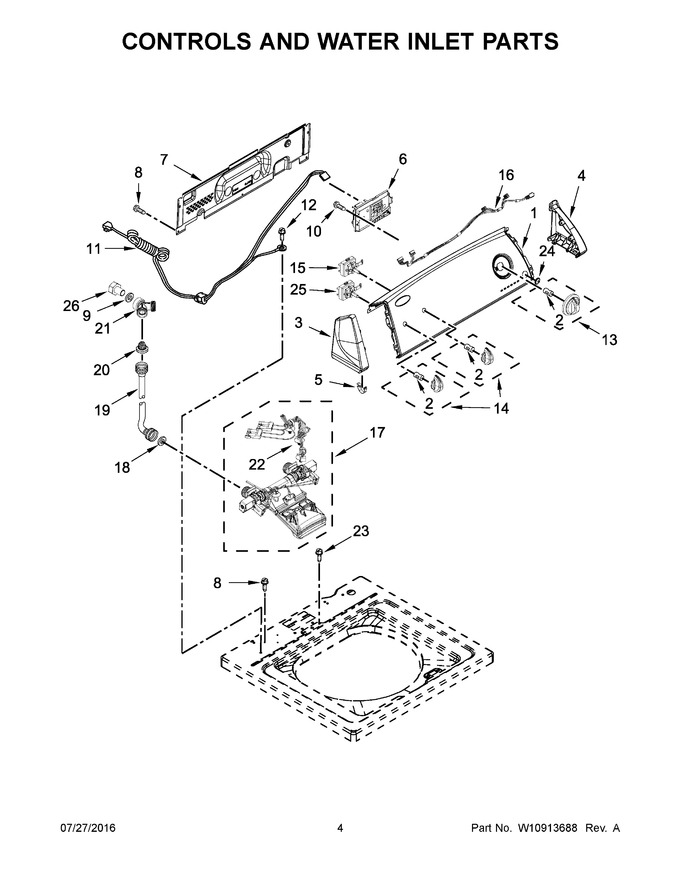

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10365091 | Panel, Console (Replaces: W10365091) |
|
$ 233.97 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | WP8565957 | End Cap (left) (white) (Replaces: 8566035) |
|
$ 58.28 | |||||
| 4 | WP8565954 | End Cap (right) (white) (Replaces: 8566032) |
|
$ 59.26 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W10754629 | Control Unit Assembly, Machine & Motor |
|
- | |||||
| 7 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 324.39 | ||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 9 | WP3357450 | Washer, Hose Adapter (Replaces: 3357450) |
|
$ 10.40 | |||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 11 | W10422755 | Cord, Power |
|
- | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | W10034750 | Assembly, Timer Knob (white/metallic) |
|
$ 28.27 | |||||
| 14 | W10034380 | Assembly, Control Knob (white/metallic) |
|
$ 25.06 | |||||
| 15 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 163.89 | ||||
| 16 | W10537670 | Harness, Upper |
|
$ 30.53 | |||||
| 17 | WPW10683676 | Inlet Assembly, Water (Replaces: W10683676) |
|
$ 186.83 | |||||
| 18 | WP16123 | Washer, Hose (Replaces: W10242307) |
|
$ 7.34 | |||||
| 19 | WP89503 | Hose, Water Inlet (cold) (Replaces: W10194210) |
|
Immediately | $ 21.68 | ||||
| 20 | 285452A | Washer, Filter (Replaces: W10810281) |
|
Immediately | $ 8.72 | ||||
| 21 | WPW10269488 | Connector, Hose -"y (Replaces: W10269488) |
|
$ 80.68 | |||||
| 22 | W10876654 | Harness, Valve (Replaces: W10684972) |
|
$ 175.43 | |||||
| 23 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 24 | WPW10251309 | Push Button, Start (Replaces: W10251309) |
|
Immediately | $ 68.40 | ||||
| 25 | WPW10285517 | Switch, Rotary Encoder (3 Position) (Replaces: W10285517) |
|
$ 122.27 | |||||
| 26 | WP3357397 | Adapter, Hose (Replaces: 3357397) |
|
$ 84.34 | |||||
| 19A | WP89503 | Hose, Water Inlet (hot) (Replaces: W10194211) |
|
Immediately | $ 21.68 | ||||
| NI | N/P | (parts Not Shown) |
|
- | |||||
| NI | W10446855 | 10a Cord Lock |
|
- | |||||
| NI | WPW10476820 | 10a Cord Adapter (british) (Replaces: W10476820) |
|
$ 25.24 | |||||
| NI | W10474959 | 10a Cord Adapter (south Africa) |
|
- | |||||
| NI | WPW10476822 | 10a Cord Adapter (european) (Replaces: W10476822) |
|
$ 72.81 |
