View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts

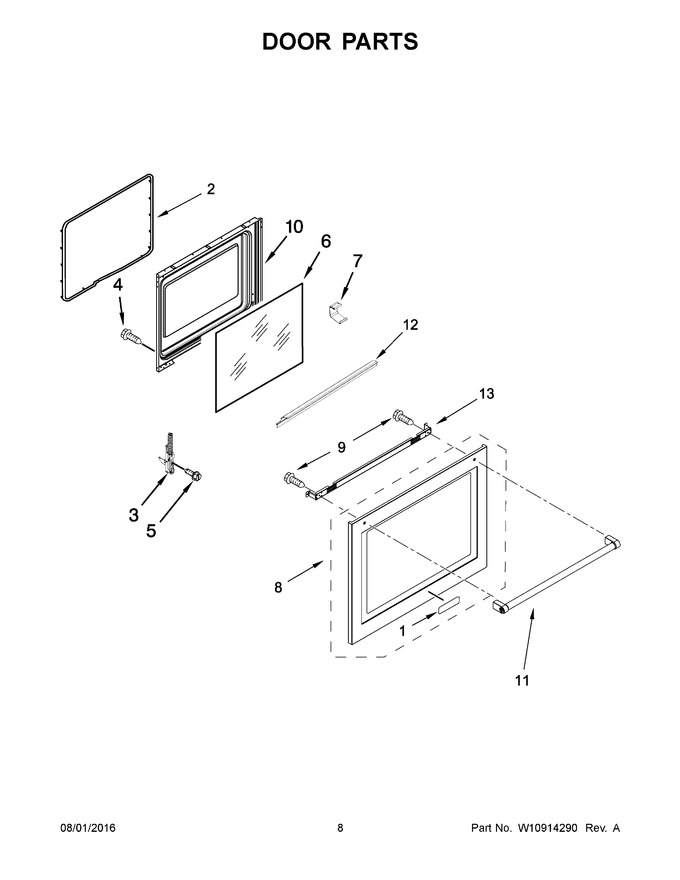

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10909682 | Badge (grey) (Replaces: W10518672) |
|
Immediately | $ 68.58 | ||||
| 2 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 80.50 | ||||
| 3 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 117.09 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.31 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 6 | W11339500 | Glass, Inner (Replaces: W10813616) |
|
$ 154.05 | |||||
| 7 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 8 | W10906445 | Glass Assembly, Outer Door (stainless) (Replaces: W10830225) |
|
$ 461.96 | |||||
| 9 | WPW10241367 | Screw (Replaces: W10241367) |
|
$ 6.27 | |||||
| 10 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 301.54 | |||||
| 11 | W11104399 | Handle, Door (stainless) (Replaces: W10551000) |
|
$ 213.73 | |||||
| 12 | W11251351 | Scoop, Door (black) (Replaces: W10613791) |
|
Immediately | $ 125.70 | ||||
| 13 | W10541911 | Bracket, Glass Upper Handle |
|
$ 35.93 |
