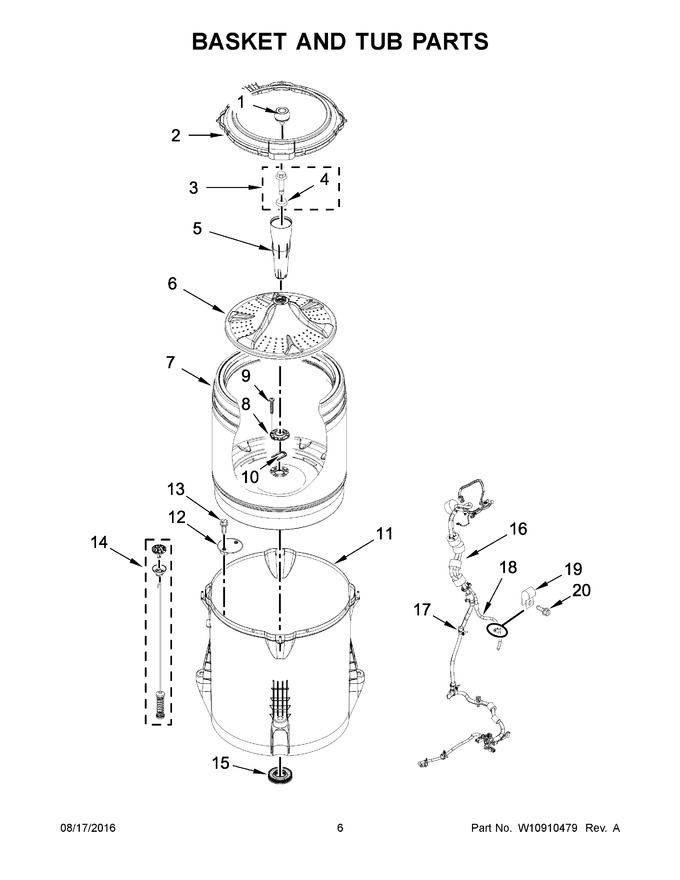

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10793634 | Dispenser Assembly (Replaces: W10777969) |
|
Immediately | $ 72.51 | ||||
| 2 | WPW10556325 | Tub Ring (Replaces: W10556325) |
|
Immediately | $ 183.74 | ||||
| 3 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 5.54 | ||||
| 4 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 10.47 | ||||
| 5 | W10836434 | Barrel, Agitator (Replaces: W10680216) |
|
$ 160.96 | |||||
| 6 | W11397111 | Impeller (washplate) (Replaces: W10680215) |
|
Immediately | $ 169.53 | ||||
| 7 | W10521298 | Basket Assembly |
|
$ 437.41 | |||||
| 8 | W10528947 | Hub - Driven, Basket (Replaces: W10396887) |
|
Immediately | $ 40.16 | ||||
| 9 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 6.80 | ||||
| 10 | W11385424 | Retainer, Drive Block (Replaces: W10402178) |
|
Immediately | $ 11.67 | ||||
| 11 | W10324648 | Tub (Replaces: W10238301) |
|
$ 325.67 | |||||
| 12 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 58.73 | |||||
| 13 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 14 | W11682068 | Damper Assembly, Tub Suspension Set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W10821954) |
|
Immediately | $ 83.03 | ||||
| 15 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 88.36 | ||||
| 16 | W10903243 | Harness, Lower (Replaces: W10736242) |
|
$ 158.02 | |||||
| 17 | WPW10298887 | Cable Tie (Replaces: W10298887) |
|
$ 7.18 | |||||
| 18 | W10846364 | Hose, Pressure Switch (Replaces: W10520039) |
|
Immediately | $ 23.23 | ||||
| 19 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.58 | ||||
| 20 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 |
