SELECT A DIAGRAM

01 - Cover Sheet

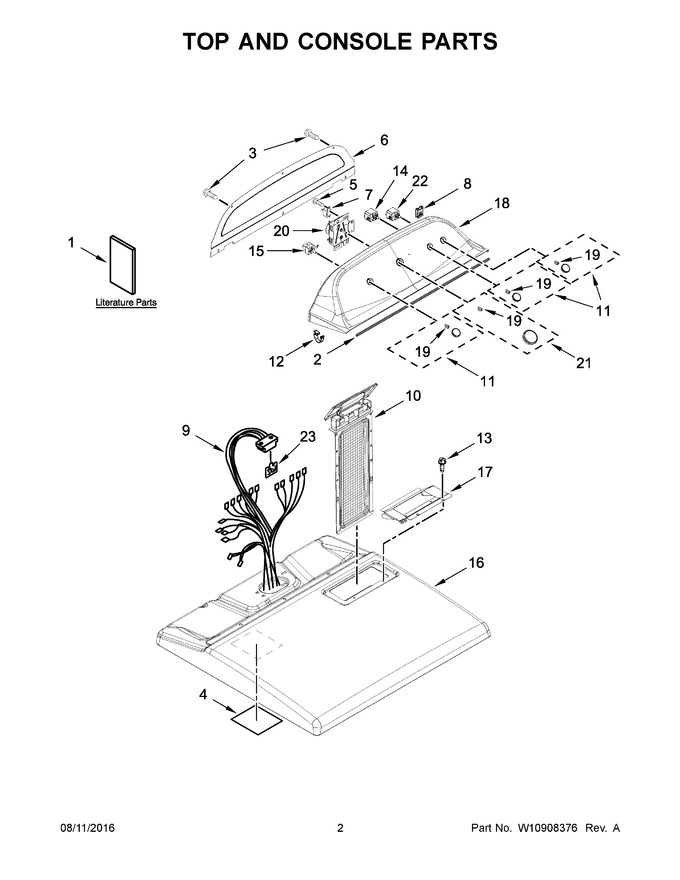

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10791287		Installation Instructions		Appelez-nous	-
2	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 27.86
5	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
6	W10756582		Panel, Rear		Appelez-nous	-
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
9	W10865744		Harness, Wiring		Appelez-nous	-
10	W11778254		Lint Screen (white)   (Replaces: W10508973)			Immediately	$ 49.17
11	W10875173		Assembly, Knob (chrome)   (Replaces: W10766132)		Appelez-nous	-
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	WPW10446920		Switch, Push To Start   (Replaces: W10446920)			Immediately	$ 83.27
15	W10562713		Switch, Rotary (temperature)		Appelez-nous	-
16	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 244.23
17	W10662472		Collar, Lint Chute				$ 70.08
18	W10875171		Assembly, Console (white)   (Replaces: W10791109)		Appelez-nous	-
19	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
20	W11399035		Assembly, Timer   (Replaces: W10685025)				$ 327.91
21	W10875178		Assembly, Timer Knob (chrome)   (Replaces: W10777242)		Appelez-nous	-
22	W10648614		Switch, Rotary (temperature)				$ 66.73
23	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 296.94
1A	W10791286		Use And Care Guide		Appelez-nous	-
1B	W10876321		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
