SELECT A DIAGRAM

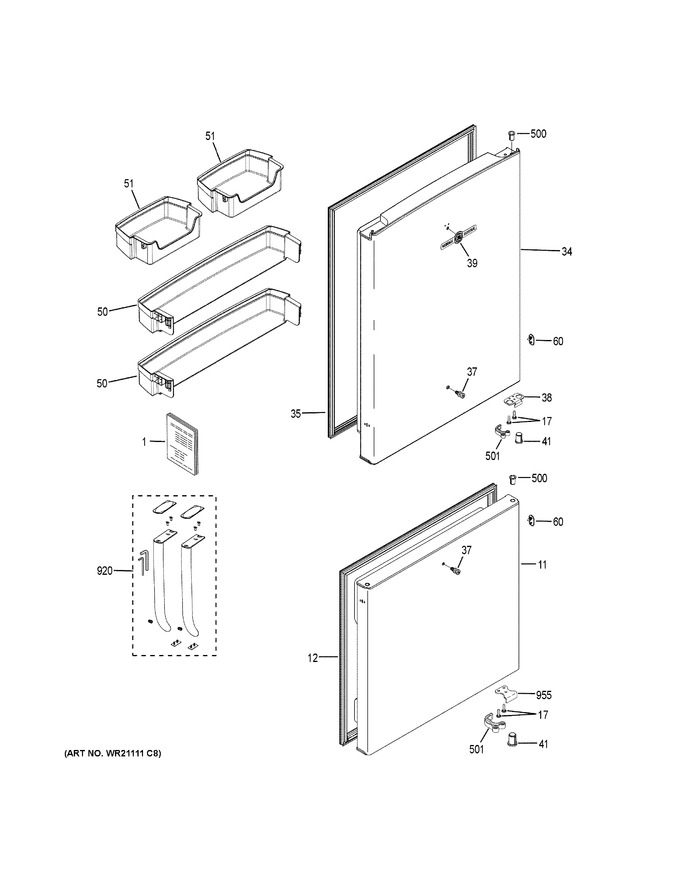

1 - Doors


2 - Freezer Section


3 - Freezer Shelves


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Case Parts


7 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51940		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60539		Pm Guide Owners		Appelez-nous	-
11	WR78X25757		Door Foam Fz Asm White		Appelez-nous	-
12	WR14X25672		Gasket Door Fz Ww		Appelez-nous	-
17	WR01X10582		Scr 10-16		Appelez-nous	-
34	WR78X25756		Door Foam Ff Asm White		Appelez-nous	-
35	WR14X25721		Gasket Door Ff Ww		Appelez-nous	-
37	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 11.44
38	WR02X24874		Stop Door		Appelez-nous	-
39	WR04X20207		Badge Asm		Appelez-nous	-
41	WR02X24875		Hinge Bushing Bb		Appelez-nous	-
50	WR71X25410		Shelf Door Full		Appelez-nous	-
51	WR71X24867		Shelf Door Module		Appelez-nous	-
60	WR02X25697		Plug Button Ww				$ 6.73
500	WR02X25720		Hinge Bushing Ww		Appelez-nous	-
501	WR02X24877		Force Closure		Appelez-nous	-
920	WR12X20219		Kit Handle Asm		Appelez-nous	-
955	WR02X25426		Door Stop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
