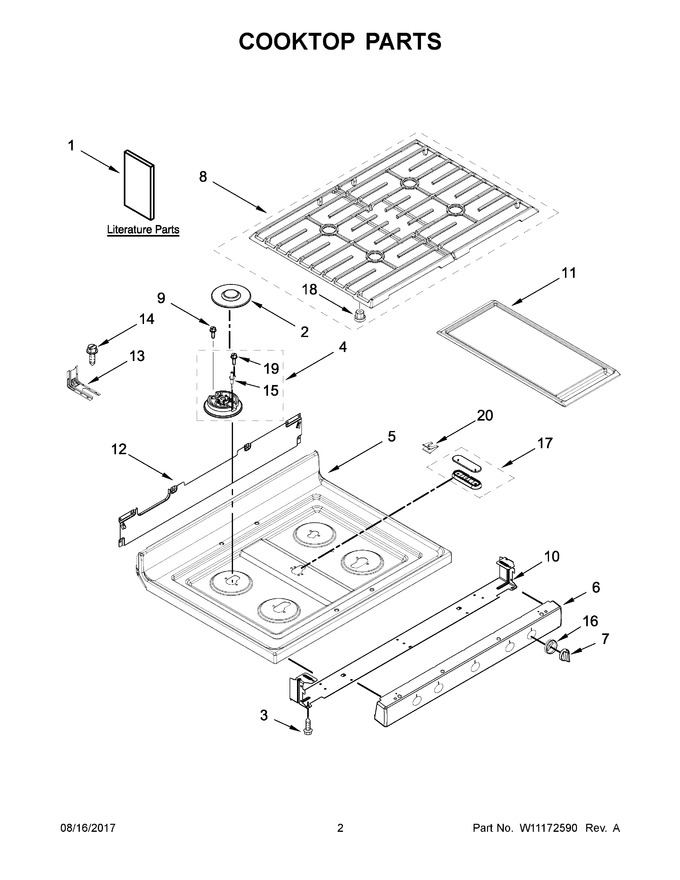

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10694025 | Instructions, Installation |
|
- | |||||
| 2 | W10881749 | Set, Burner Cap (black (set Of 4)) (Replaces: W10850506) |
|
$ 100.52 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 4 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 101.22 | |||||
| 5 | W10884167 | Cooktop (black) |
|
- | |||||
| 6 | W10724449 | Panel, Manifold (black) |
|
$ 246.39 | |||||
| 7 | W10892255 | Knob, Control (black) |
|
- | |||||
| 8 | W11381652 | Set, Grate (black) (Replaces: W10655132) |
|
$ 348.95 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.70 | ||||
| 10 | W10534174 | Bracket, Manifold Panel |
|
- | |||||
| 11 | W10347385 | Kit, Griddle |
|
- | |||||
| 12 | W10530070 | Bracket, Rear Gas Cooktop |
|
- | |||||
| 13 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 14 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 15 | WPW10515459 | Electrode (left Front, Left Rear, Right Front, Right Rear) (Replaces: W10515459) |
|
Immediately | $ 39.39 | ||||
| 16 | W10894849 | Bezel (black) |
|
- | |||||
| 17 | W11162114 | Spreader, Flame (Replaces: W10298664) |
|
$ 80.91 | |||||
| 18 | W10919249 | Bumper, Grate (Replaces: 8003P033-60) |
|
Immediately | $ 11.86 | ||||
| 19 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 20 | W10575401 | Clip, Spring (electrode) |
|
Immediately | $ 10.17 | ||||
| 15A | W11447374 | Electrode (center) (Replaces: W10496870) |
|
Immediately | $ 41.49 | ||||
| 16A | W10894848 | Bezel (white) |
|
- | |||||
| 1A | W10667179 | Guide, Use & Care |
|
- | |||||
| 1B | W10538797 | Sheet, Tech (english) |
|
- | |||||
| 1C | W10538798 | Sheet, Tech (french) |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1F | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 4A | WPW10515454 | Assembly, Burner (9.5k) (left Rear & Center) (Replaces: W10515454) |
|
$ 104.17 | |||||
| 4B | WPW10515453 | Burner, Auxiliary (6k) (right Rear) (Replaces: W10515453) |
|
$ 89.36 | |||||
| 5A | W11040043 | Cooktop (white) (Replaces: W10888303) |
|
$ 574.13 | |||||
| 6A | W10724448 | Panel, Manifold (white) |
|
$ 246.50 | |||||
| 7A | W10892257 | Knob, Control (white) |
|
- | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10797419 | Harness, Main |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 194.90 | |||||
| NI | W10809927 | Harness, Cooktop |
|
$ 144.81 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- |
