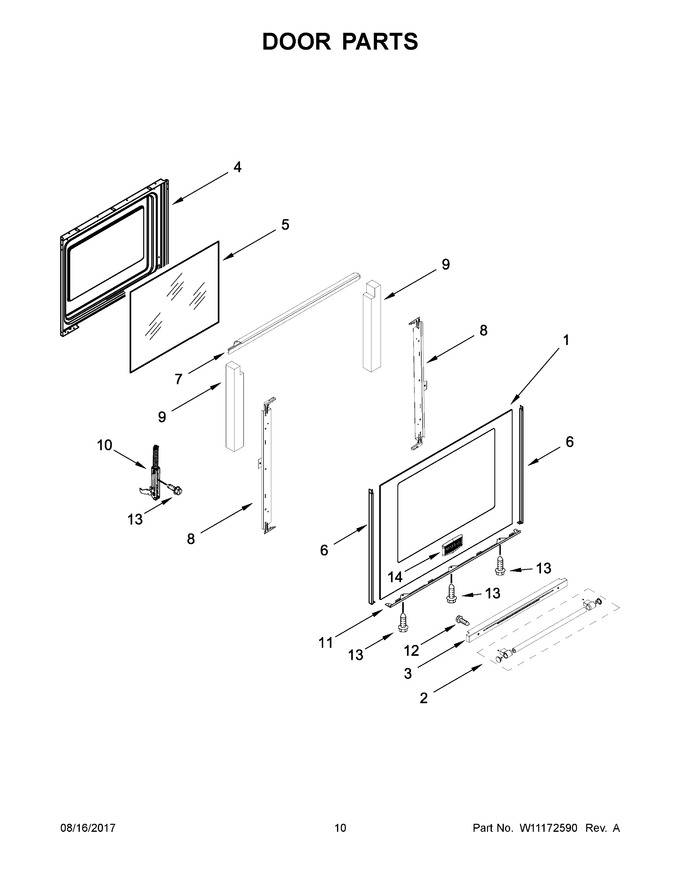

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10804365		Glass, Outer Door (black)   (Replaces: W10665481)				$ 287.55
2	W10920642		Assembly, Handle (black)   (Replaces: W10889624)				$ 203.60
3	W10294855		Trim, Vent (black)			Immediately	$ 127.84
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 298.36
5	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 267.26
6	W10334004		Trim, Side (black)				$ 210.38
7	W10294853		Bracket, Glass Liner			Immediately	$ 213.34
8	W11116956		Rail, Door   (Replaces: W10294851)				$ 120.38
9	W11688565		Insulation, Door   (Replaces: W10772958)				$ 24.32
10	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 57.42
11	W10334031		Trim, Bottom (black)				$ 70.07
12	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.44
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
14	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 38.12
11A	WPW10333990		Trim, Bottom (white)   (Replaces: W10333990)			Immediately	$ 72.20
1A	WPW10495962		Glass, Outer Door (white)   (Replaces: W10495962)				$ 362.49
2A	W10920643		Assembly, Handle (white)   (Replaces: W10889625)				$ 203.81
3A	WPW10335331		Trim, Vent (white)   (Replaces: W10335331)			Immediately	$ 112.82
6A	W10334003		Trim, Side (white)			Immediately	$ 80.72
