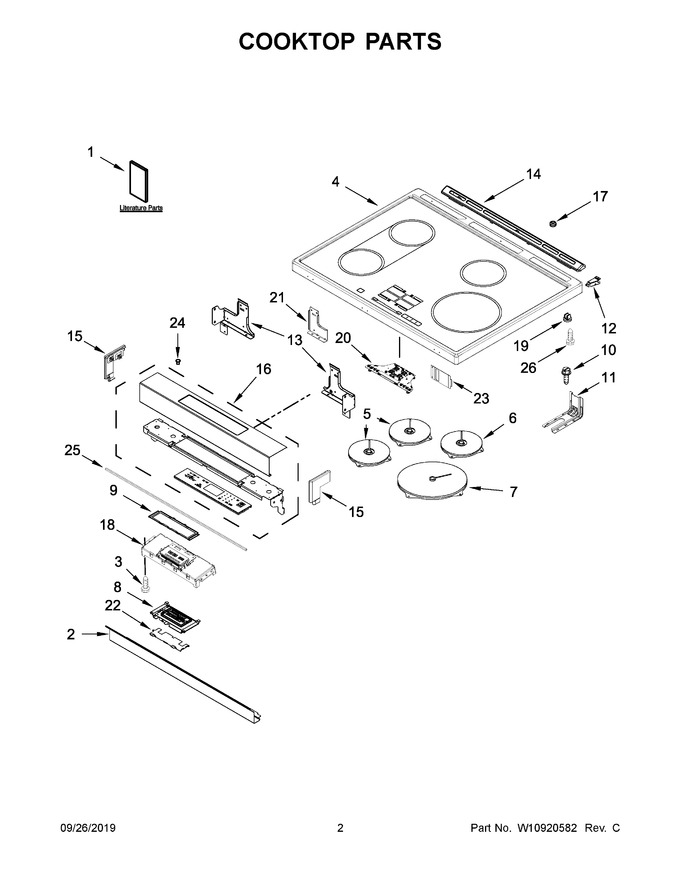

01 - Cover Sheet
02 - Cooktop Parts
03 - Interior Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10744014 | Installation, Instructions |
|
- | |||||
| 2 | W10743276 | Bracket, Mounting Stainless |
|
$ 78.01 | |||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 4 | W10808299 | Cooktop (black) (Replaces: W10536317) |
|
Immediately | $ 842.57 | ||||
| 5 | W11672688 | Element (left Front And Left Rear) (Replaces: W10636723) |
|
Immediately | $ 233.38 | ||||
| 6 | WPW10410580 | Hotplate (right Rear) (Replaces: W10410580) |
|
$ 230.27 | |||||
| 7 | WPW10410578 | Element (right Front) (Replaces: W10410578) |
|
$ 277.41 | |||||
| 8 | W11128223 | Assembly, Display (Replaces: W10759323) |
|
Immediately | $ 529.17 | ||||
| 9 | W10555923 | Bracket, User Interface |
|
$ 96.69 | |||||
| 10 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 11 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 14 | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 131.18 | ||||
| 15 | W10555937 | Endcap (stainless (left)) |
|
$ 61.16 | |||||
| 16 | W11034444 | Console (stainless) (Replaces: W10901127) |
|
Immediately | $ 731.35 | ||||
| 17 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 19.77 | ||||
| 18 | W11100619 | Control, Electronic (maxwell) (Replaces: W10759304) |
|
Immediately | $ 425.07 | ||||
| 19 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.84 | ||||
| 20 | W11208294 | Interface, User (Replaces: W10808070) |
|
Immediately | $ 552.74 | ||||
| 21 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 22 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 23 | W10757531 | Keypad, Shield |
|
$ 72.21 | |||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 25 | W10802441 | Gasket, Console/cooktop (Replaces: W10612719) |
|
Immediately | $ 20.46 | ||||
| 26 | W10516115 | Screw |
|
$ 13.07 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 15A | W10555940 | Endcap (stainless (right)) |
|
$ 61.16 | |||||
| 1A | W10896674 | Use And Care Guide |
|
- | |||||
| 1C | W10844271 | Sheet, Tech |
|
- | |||||
| 1D | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1E | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1F | W10903850 | Wiring Diagram |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | |||||
| NI | W10908894 | Harness, Main |
|
Immediately | $ 225.91 | ||||
| NI | W11175842 | Suppressor (Replaces: W10653092) |
|
Immediately | $ 107.99 | ||||
| NI | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.80 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11226772 | Harness, Display (Replaces: W10598170) |
|
Immediately | $ 213.24 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | W10580316 | Harness, Bake Drawer |
|
Immediately | $ 167.12 |
