View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts

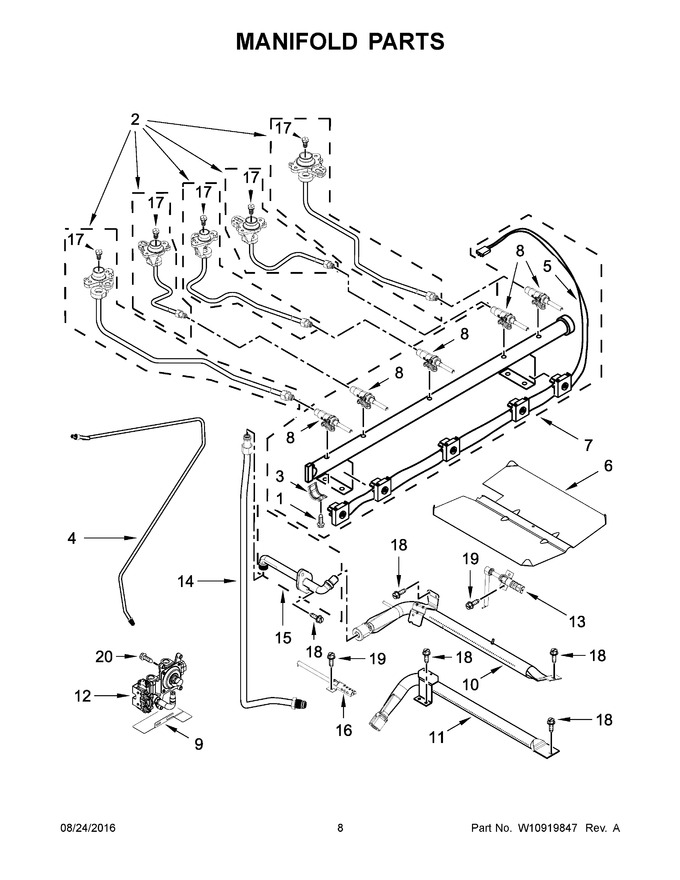

05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.59 | |||||
| 2 | W11197500 | Assembly, Orifice Holder (15k) (left Front) (Replaces: W10473936) |
|
$ 100.67 | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 20.48 | |||||
| 4 | W10510125 | Tubing, Main Supply |
|
$ 196.79 | |||||
| 5 | W11233074 | Harness, Igniter (includes Switches) (Replaces: W10811691) |
|
$ 171.27 | |||||
| 6 | 3601P336-45 | Baffle, Broil Burner |
|
$ 204.38 | |||||
| 7 | W10859728 | Assembly, Manifold |
|
$ 322.54 | |||||
| 8 | WPW10279615 | Valve, Gas (left Front & Right Front) (Replaces: W10279615) |
|
$ 233.02 | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 85.48 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 82.49 | ||||
| 12 | W10919226 | Valve, Gas (Replaces: W10720102) |
|
Immediately | $ 195.35 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 98.85 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 170.84 | |||||
| 15 | W10776437 | Fitting, Broil |
|
$ 93.11 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 93.71 | ||||
| 17 | WPW10347414 | Orifice (15k) (left Front) (Replaces: W10347414) |
|
$ 81.45 | |||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 17A | WPW10170507 | Orifice (8k) (left Rear) (Replaces: W10170507) |
|
$ 88.07 | |||||
| 17B | W10178934 | Orifice (12k) (right Front) |
|
Immediately | $ 93.24 | ||||
| 17C | W10732136 | Orifice (5k) (right Rear) |
|
$ 84.99 | |||||
| 17D | W10657947 | Orifice (8k) (center) |
|
$ 20.16 | |||||
| 2A | W11643127 | Assembly, Orifice Holder (9.5k) (left Rear) (Replaces: W10732140) |
|
$ 78.35 | |||||
| 2B | W11661950 | Assembly, Orifice Holder (15k) (right Front) (Replaces: W10732137) |
|
$ 76.24 | |||||
| 2C | W10732139 | Assembly, Orifice Holder (5k) (right Rear) |
|
$ 103.32 | |||||
| 2D | W10836764 | Assembly, Orifice Holder (8k) (center) |
|
$ 112.71 | |||||
| 8A | WPW10279614 | Valve, Gas (left Rear) (Replaces: W10279614) |
|
$ 251.83 | |||||
| 8B | WPW10247744 | Valve, Gas (right Rear) (Replaces: W10247744) |
|
$ 252.11 | |||||
| 8C | W10850894 | Valve, Gas (center) |
|
$ 250.49 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10170516 | Kit, Lp 5 Orifice Conversion (Replaces: W10170516) |
|
$ 100.37 | |||||
| NI | W11087486 | Kit, Lp Conversion (bake/broil) (Replaces: W10566535) |
|
Immediately | $ 106.16 |
