01 - Cover Sheet

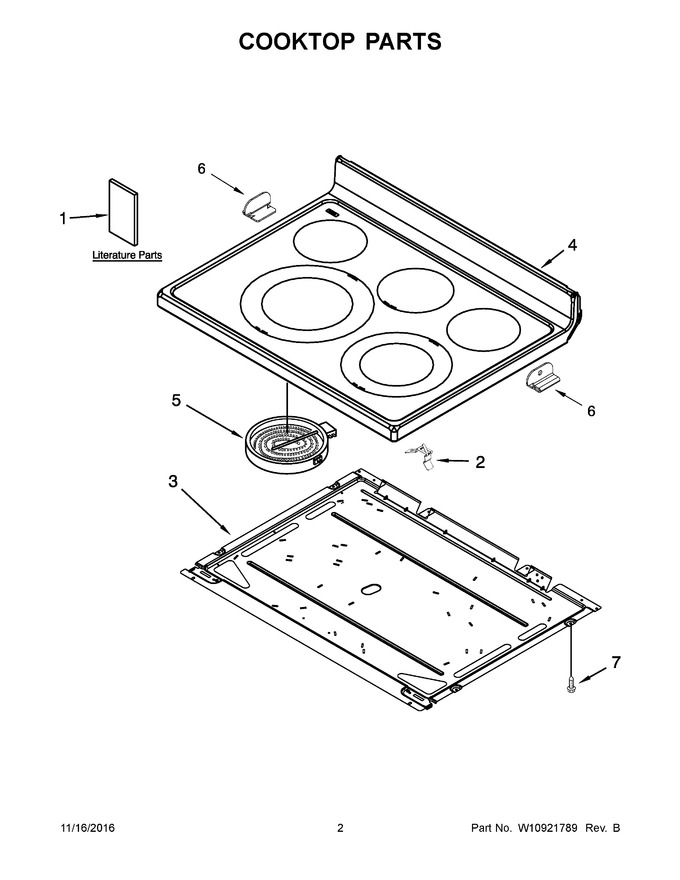

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10877842 | Instructions, Installation |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 129.14 | ||||
| 4 | W10245805 | Cooktop (black) (Replaces: W10380657) |
|
$ 498.45 | |||||
| 5 | W11517959 | Element (3000w/1400w Dual) (left Front) (Replaces: W10275048) |
|
Immediately | $ 132.01 | ||||
| 6 | W10607641 | Bracket, Cooktop (left) |
|
$ 30.17 | |||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 1A | W10866296 | Guide, Use & Care |
|
- | |||||
| 1B | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1C | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1C | W10873898 | Tech Sheet |
|
- | |||||
| 1D | W10873898 | Sheet, Tech |
|
- | |||||
| 1D | W10873905 | Diagram, Wiring |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10873905 | Diagram, Wiring |
|
- | |||||
| 5A | W11047722 | Element (2500w) (right Front) (Replaces: 8273992) |
|
Immediately | $ 119.21 | ||||
| 5A | W11171119 | Element (1200w) (left Rear & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 5B | W11171119 | Element (1200w) (left Rear & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 5B | W11047722 | Element (2500w) (right Front) (Replaces: 8273992) |
|
Immediately | $ 119.21 | ||||
| 6A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11188499 | Harness, Main (Replaces: W10863976) |
|
$ 206.22 | |||||
| NI | W10842604 | Harness, Cooktop (right) |
|
$ 184.72 | |||||
| NI | W10842605 | Harness, Cooktop (left) |
|
$ 184.95 | |||||
| NI | W10084710 | Harness, Sensor (Replaces: W10174428) |
|
$ 122.45 | |||||
| NI | W11825098 | Harness, Hidden Bake (Replaces: W10465644) |
|
$ 77.70 | |||||
| NI | W10183541 | Clip, Spring Steel |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | |||||
| NI | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.86 |
