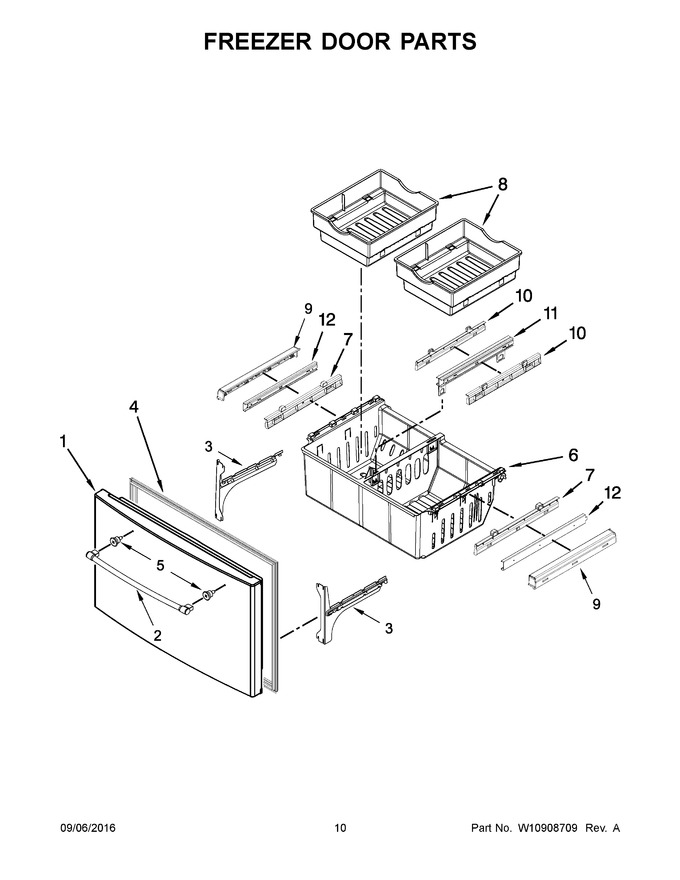

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977881WQ | Door, Freezer (white) (Replaces: 12977881W) |
|
$ 767.87 | |||||
| 2 | W10879688 | Handle, Door (stainless) (Replaces: W10840878) |
|
$ 226.67 | |||||
| 3 | WPW10330991 | Bracket, Door Slide (left Hand) (Replaces: W10330991) |
|
$ 147.88 | |||||
| 4 | W10443323 | Gasket, Door (white) |
|
Immediately | $ 318.45 | ||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 6 | W10166235 | Bin, Lower (Replaces: 13036201SP) |
|
$ 166.25 | |||||
| 7 | W10166742 | Adapter, Outer Bin (Replaces: 12925403SP) |
|
$ 88.31 | |||||
| 8 | WP12924903 | Bin, Upper (left Hand) (Replaces: 12924903) |
|
$ 119.07 | |||||
| 9 | W10826788 | Retainer, Glide (left Hand) |
|
$ 51.75 | |||||
| 10 | 12925404SP | Adapter, Center Bin |
|
$ 40.79 | |||||
| 11 | WPW10235357 | Assembly, Bracket And Glide (Replaces: W10235357) |
|
Immediately | $ 297.88 | ||||
| 12 | WPW10235367 | Glide, Drawer (Replaces: W10235367) |
|
$ 282.09 | |||||
| 1A | 12977881BQ | Door, Freezer (black) (Replaces: 12977881B) |
|
$ 863.64 | |||||
| 1B | W10854491 | Door, Freezer (stainless) (Replaces: W10842620) |
|
$ 1,240.22 | |||||
| 3A | WPW10330993 | Bracket, Door Slide (right Hand) (Replaces: W10330993) |
|
$ 149.48 | |||||
| 4A | W10436254 | Gasket, Door (black) |
|
$ 272.93 | |||||
| 4B | WPW10443324 | Gasket, Door (grey) (Replaces: W10443324) |
|
Immediately | $ 304.27 | ||||
| 8A | W10166236 | Bin, Upper (right Hand) (Replaces: 13036302) |
|
$ 231.54 | |||||
| 9A | W10826789 | Retainer, Glide (right Hand) |
|
- |
