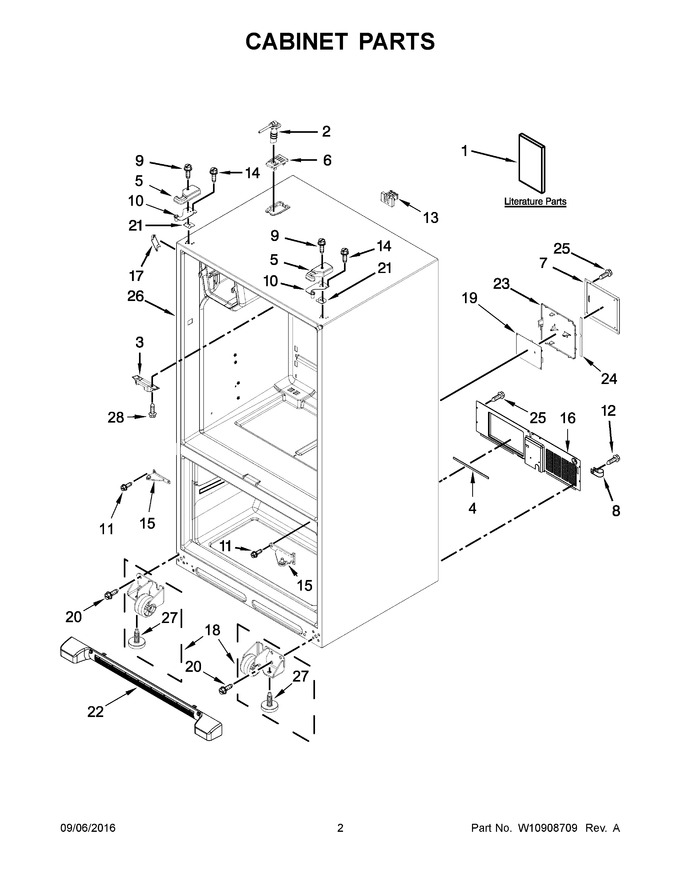

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10814258		Tech Sheet (english)		Appelez-nous	-
2	W11551552		Tube, Water   (Replaces: 12961402)			Immediately	$ 18.17
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 7.39
4	B5759655		Gasket				$ 11.73
5	WPW10337634		Cover, Top Hinge Left Hand (white)   (Replaces: W10337634)			Immediately	$ 21.19
6	12981401W		Cover, Fill Tube (white)				$ 11.93
7	12961602		Cover, Control Box				$ 104.57
8	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 20.16
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 6.80
10	W11592375		Hinge, Top (left Hand)   (Replaces: 12963204ED)				$ 28.73
11	W11573362		Screw (stainless)   (Replaces: W10673840)				$ 13.25
12	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
13	W11686793		Block, Fill Tube   (Replaces: W10658542)				$ 21.21
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.59
15	W10918113		Hinge, Center Left Hand (white)   (Replaces: 13000001WD)				$ 88.13
16	W10211849		Cover, Machine Compartment Back				$ 177.00
17	12587703W		Cover, Corner (white)				$ 20.61
18	W11820444		Assembly, Roller (left Hand)   (Replaces: W10515763)			Immediately	$ 33.62
19	WPW10312695		Board, Hv Control   (Replaces: W10312695)			Immediately	$ 221.74
20	WP489349		Screw   (Replaces: 12990101)			Immediately	$ 7.59
21	12999501		Shim, Top Hinge (left Hand)				$ 89.58
22	WPW10534161		Grille, Toe (white)   (Replaces: W10534161)				$ 132.38
23	W10296536		Lid, Hv Control				$ 89.42
24	12957801		Gasket, Control Box		Appelez-nous	-
25	W11686675		Screw   (Replaces: 12990702)				$ 12.84
26	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
27	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.42
28	W10854958		Screw   (Replaces: 12990302)				$ 7.11
10A	W11592374		Hinge, Top (right Hand)   (Replaces: 12963205ED)			Immediately	$ 28.71
15A	W10918164		Hinge, Center Left Hand (black)   (Replaces: 13000007ED)				$ 82.38
15B	W10917988		Hinge, Center Left Hand (grey)   (Replaces: 13000001AP)			Immediately	$ 86.07
15C	13000002WD		Hinge, Center Right Hand (white)				$ 144.89
15D	W10918164		Hinge, Center Right Hand (black)   (Replaces: 13000008ED)				$ 82.38
15E	W10917988		Hinge, Center Right Hand (grey)   (Replaces: 13000002AP)			Immediately	$ 86.07
17A	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 19.93
17B	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 7.26
18A	W11820445		Assembly, Roller (right Hand)   (Replaces: W10515762)			Immediately	$ 33.62
1A	W10814260		Tech Sheet (french)		Appelez-nous	-
1B	W10731561		Use And Care Guide		Appelez-nous	-
1C	W10847566		Energy Guide		Appelez-nous	-
21A	12999502		Shim, Top Hinge (right Hand)				$ 90.54
22A	WPW10534162		Grille, Toe (black)   (Replaces: W10534162)				$ 133.34
22B	WPW10534160		Grille, Toe (grey)   (Replaces: W10534160)			Immediately	$ 65.34
5A	W10337647		Cover, Top Hinge Left Hand (black)			Immediately	$ 21.00
5B	WPW10337648		Cover, Top Hinge Left Hand (grey)   (Replaces: W10337648)				$ 20.81
5C	67005958		Cover, Top Hinge Right Hand (white)   (Replaces: 12962302W)				$ 19.41
5D	WP67005956		Cover, Top Hinge Right Hand (black)   (Replaces: 12962302B)				$ 20.29
5E	WPW10191117		Cover, Top Hinge Right Hand (grey)   (Replaces: 12962302AP)				$ 20.75
6A	12981401B		Cover, Fill Tube (black)				$ 11.93
6B	W10191141		Cover, Fill Tube (grey)   (Replaces: 12981401AP)				$ 13.55
