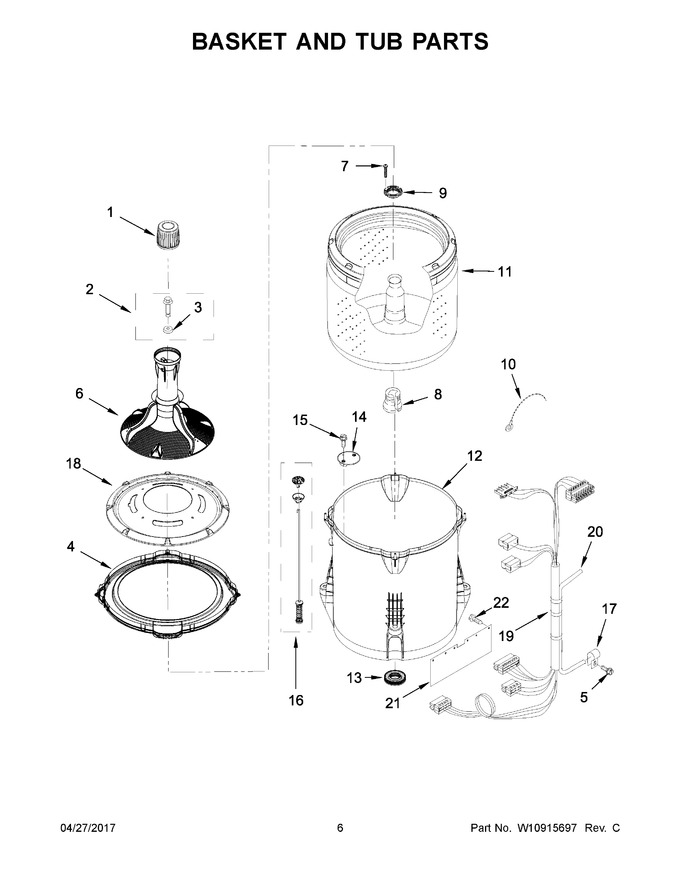

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10863011 | Dispenser, Fabric Softener |
|
$ 67.63 | |||||
| 2 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 4.77 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 4 | WPW10531289 | Ring, Tub (Replaces: W10531289) |
|
Immediately | $ 182.35 | ||||
| 5 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 | ||||
| 6 | W11447102 | Agitator (Replaces: W10680206) |
|
- | |||||
| 7 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 6.80 | ||||
| 8 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 9 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 10.40 | ||||
| 10 | W10339680 | Cable Tie |
|
- | |||||
| 11 | W10554251 | Basket Assembly |
|
Immediately | $ 388.99 | ||||
| 12 | W10371566 | Tub (Replaces: W10238320) |
|
$ 320.71 | |||||
| 13 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 84.15 | ||||
| 14 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 58.73 | |||||
| 15 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 16 | W10780045 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W10821951) |
|
Immediately | $ 102.83 | ||||
| 17 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.58 | ||||
| 18 | W11085570 | Base Shield (Replaces: W10723583) |
|
$ 36.51 | |||||
| 19 | W10746354 | Harness, Lower |
|
- | |||||
| 20 | WP353244 | Hose Pressure Switch (Replaces: 8572540) |
|
Immediately | $ 78.00 | ||||
| 21 | W10339098 | Shield, Splash |
|
$ 23.27 | |||||
| 22 | W10429200 | Retainer, Push-in |
|
- |
