SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

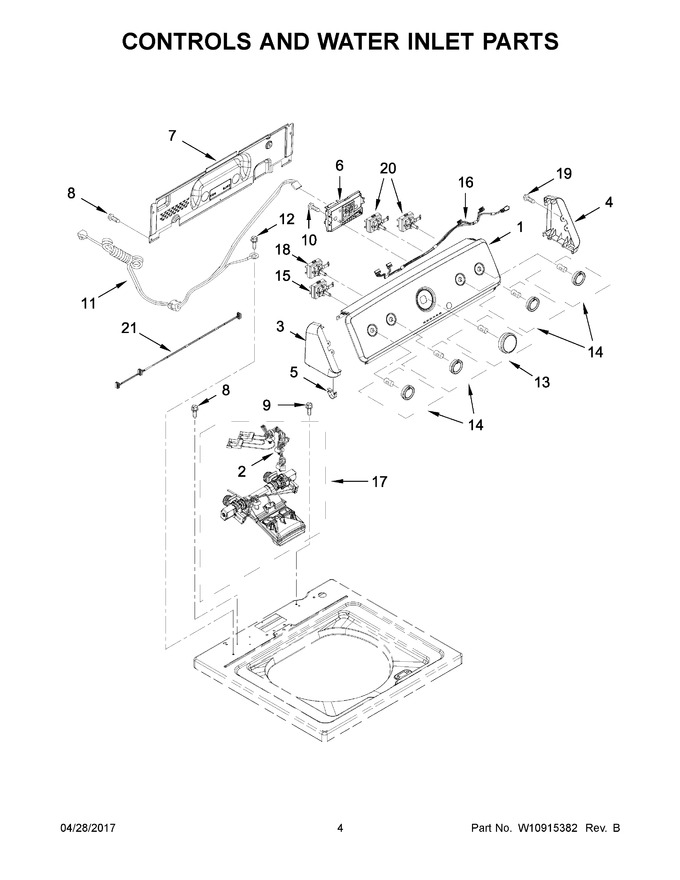

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11027113		Panel, Console   (Replaces: W10774530)		Appelez-nous	-
2	W11038628		Inlet Assembly, Water   (Replaces: W11026622)				$ 220.41
3	W10193826		End Cap (left) (white)		Appelez-nous	-
4	W10193823		End Cap (right) (white)		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W11116584		Control Unit Assembly, Machine And Motor   (Replaces: W10867808)				$ 463.46
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 324.39
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
9	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
11	W10834290		Power Cord, Universal		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 16.95
14	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 16.95
15	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 122.27
16	W10694685		Harness, Upper				$ 171.07
17	W10917060		Harness, Valve		Appelez-nous	-
18	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
19	W11693756		Screw   (Replaces: 359625)			Immediately	$ 13.28
20	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 163.89
21	W10694669		Harness, Jumper				$ 76.59
NI	WPW10475423		10a Cord Adapter (type B)   (Replaces: W10475423)				$ 19.58
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 25.24
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 72.81
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	N/P		(parts Not Shown)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
