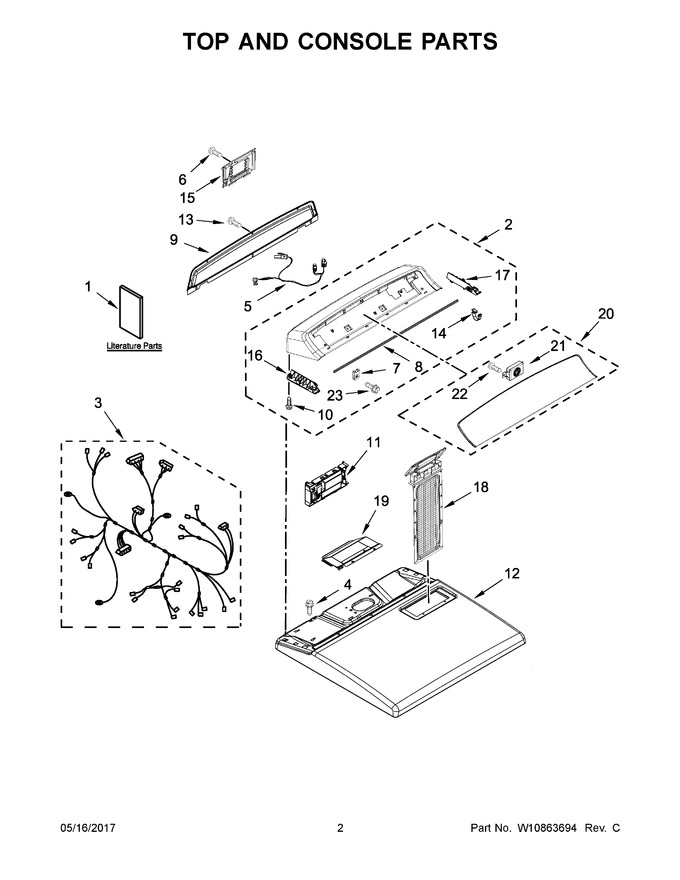

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11101359 | Installation Instructions |
|
- | |||||
| 2 | W11050696 | Console Assembly (complete) (white) (Replaces: W10622070) |
|
$ 172.20 | |||||
| 3 | W10777422 | Harness, Wiring |
|
- | |||||
| 4 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 5 | W10634454 | Harness, User Interface |
|
- | |||||
| 6 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 7 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 8 | W11721376 | Seal, Console (Replaces: W10726632) |
|
- | |||||
| 9 | W11626083 | Panel, Rear (Replaces: W10634729) |
|
$ 136.22 | |||||
| 10 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 11 | W10802078 | Control, Electronic (Replaces: W10691551) |
|
Immediately | $ 421.21 | ||||
| 12 | W11222514 | Top (white) (Replaces: W10613389) |
|
Immediately | $ 271.37 | ||||
| 13 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 15 | W11298298 | Cover, Terminal Block (Replaces: W10571619) |
|
$ 93.91 | |||||
| 16 | W10631629 | Console Mount (right) |
|
- | |||||
| 17 | W10631630 | Console Mount (left) |
|
$ 153.63 | |||||
| 18 | W11778254 | Lint Screen (white) (Replaces: W10508973) |
|
Immediately | $ 54.63 | ||||
| 19 | W10662472 | Collar, Lint Chute |
|
$ 77.87 | |||||
| 20 | W10507955 | Assembly, Fascia |
|
$ 501.36 | |||||
| 21 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 22 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 23 | W10728156 | Screw |
|
- | |||||
| 12A | W10902813 | Top (chrome Shadow) (Replaces: W10869112) |
|
- | |||||
| 18A | W10869049 | Lint Screen (chrome Shadow) |
|
- | |||||
| 1A | W10680128 | Guide, Use And Care |
|
- | |||||
| 1B | W10680138 | Tech Sheet |
|
- | |||||
| 1C | W10743379 | Quickstart Guide |
|
- | |||||
| 2A | W11116871 | Console Assembly (complete) (chrome Shadow) (Replaces: W10682652) |
|
$ 684.03 |
