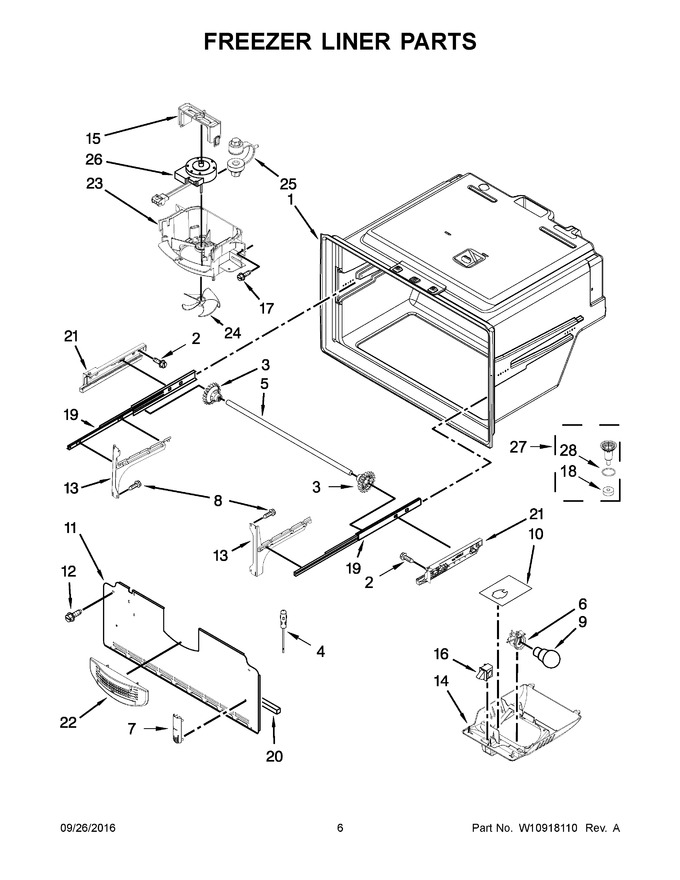

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 7.70 | ||||
| 3 | 12002497 | Gear |
|
Immediately | $ 20.26 | ||||
| 4 | 12002355 | Thermistor (Replaces: 12791406SP) |
|
Immediately | $ 44.10 | ||||
| 5 | W11715937 | Shaft, Rack (Replaces: W10802331) |
|
$ 61.82 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 12.48 | ||||
| 7 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.39 | |||||
| 8 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 9 | W11216993 | Lamp, Led (Replaces: W10820003) |
|
Immediately | $ 47.21 | ||||
| 10 | W11469652 | Foil, Housing (Replaces: W10277466) |
|
$ 20.96 | |||||
| 11 | W10308422 | Cover, Evaporator |
|
$ 75.28 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 13 | WPW10330991 | Bracket, Door Slide (left Hand) (Replaces: W10330991) |
|
$ 147.88 | |||||
| 14 | W11434460 | Module, Light (Replaces: W10315248) |
|
Immediately | $ 33.53 | ||||
| 15 | W11712696 | Clip, Fan Motor (Replaces: 12956601) |
|
Immediately | $ 11.02 | ||||
| 16 | W11445850 | Switch, Light (Replaces: 12466111SP) |
|
Immediately | $ 47.36 | ||||
| 17 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 18 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.00 | |||||
| 19 | W11658402 | Slide, Door (Replaces: W10120018) |
|
Immediately | $ 202.03 | ||||
| 20 | W11451451 | Gasket, Foam (Replaces: A3189397) |
|
$ 11.73 | |||||
| 21 | WPW10284682 | Adapter (left Hand) (Replaces: W10284682) |
|
Immediately | $ 127.24 | ||||
| 22 | W11176847 | Grille, Air (Replaces: 12959901) |
|
$ 111.74 | |||||
| 23 | W11700329 | Shroud, Evaporator (Replaces: 12951401) |
|
Immediately | $ 55.08 | ||||
| 24 | WP67006337 | Blade, Fan (Replaces: 12986101) |
|
Immediately | $ 95.05 | ||||
| 25 | W11676465 | Grommet, Fan Motor (Replaces: 12951101) |
|
Immediately | $ 14.00 | ||||
| 26 | W10850438 | Motor, Evaporator (Replaces: W10257096) |
|
Immediately | $ 340.61 | ||||
| 27 | W10815413 | Assembly, Drain Funnel (Replaces: W10662407) |
|
Immediately | $ 46.35 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.32 | |||||
| 13A | WPW10330993 | Bracket, Door Slide (right Hand) (Replaces: W10330993) |
|
$ 149.48 | |||||
| 21A | WPW10284683 | Adapter (right Hand) (Replaces: W10284683) |
|
$ 196.18 |
