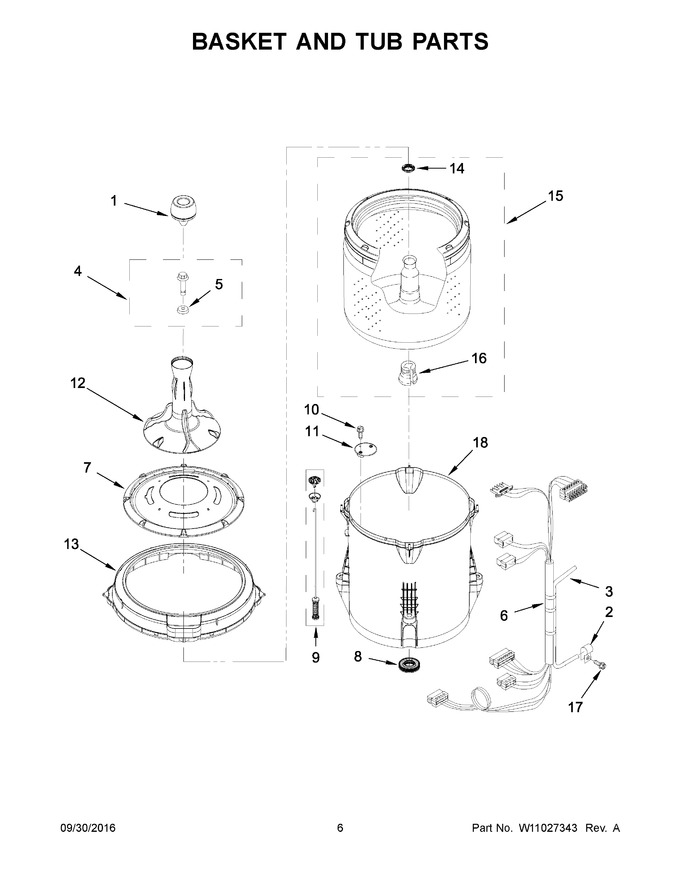

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10793634 | Dispenser Assembly (Replaces: W10777969) |
|
Immediately | $ 72.51 | ||||
| 2 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.58 | ||||
| 3 | WP353244 | Hose Pressure Switch (Replaces: 8572540) |
|
Immediately | $ 78.00 | ||||
| 4 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 4.77 | ||||
| 5 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 6 | W11652038 | Harness, Lower (Replaces: W10736239) |
|
$ 112.38 | |||||
| 7 | W11085570 | Base Shield (Replaces: W10723583) |
|
$ 36.51 | |||||
| 8 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 84.15 | ||||
| 9 | W10780045 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W10821956) |
|
Immediately | $ 102.83 | ||||
| 10 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 11 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 58.73 | |||||
| 12 | W10908289 | Agitator (Replaces: W10680208) |
|
Immediately | $ 105.68 | ||||
| 13 | WPW10531289 | Ring, Tub (Replaces: W10531289) |
|
Immediately | $ 182.35 | ||||
| 14 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 10.40 | ||||
| 15 | W10554251 | Basket Assembly |
|
Immediately | $ 388.99 | ||||
| 16 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 17 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 | ||||
| 18 | W10371566 | Tub (includes Tub Seal) (Replaces: W10238320) |
|
$ 320.71 |
