01 - Cover Sheet


02 - Top And Cabinet Parts

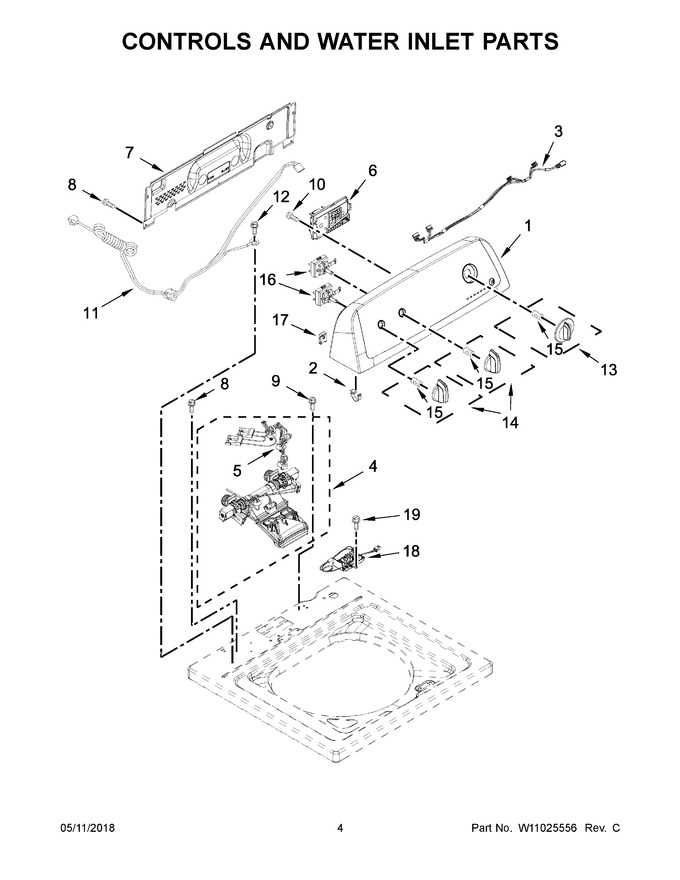

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11099223		Panel, Console   (Replaces: W10774513)		Appelez-nous	-
2	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
3	W11256701		Harness, Upper   (Replaces: W10694679)				$ 166.57
4	W11038628		Inlet Assembly, Water   (Replaces: W11026622)				$ 220.41
5	W10917060		Harness, Valve		Appelez-nous	-
6	W11116582		Control Unit Assembly, Machine And Motor   (Replaces: W11099829)				$ 494.12
7	W10409320		Panel, Console Rear Cover				$ 237.41
8	W11685943		Screw   (Replaces: W10660565)				$ 13.47
9	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
11	W10836356		Cord, Universal Power		Appelez-nous	-
12	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 7.92
13	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 7.50
14	WPW10453947		Assembly, Control Knob (white)   (Replaces: W10453947)				$ 49.28
15	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
16	WPW10414397		Switch, Rotary Encoder (3 Position)   (Replaces: W10414397)				$ 122.49
17	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
18	W11254883		Line Filter Assy   (Replaces: W10906191)		Appelez-nous	-
19	W11568617		Screw   (Replaces: W10567155)				$ 13.25
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 25.24
NI	N/P		(parts Not Shown)		Appelez-nous	-
