01 - Cover Sheet

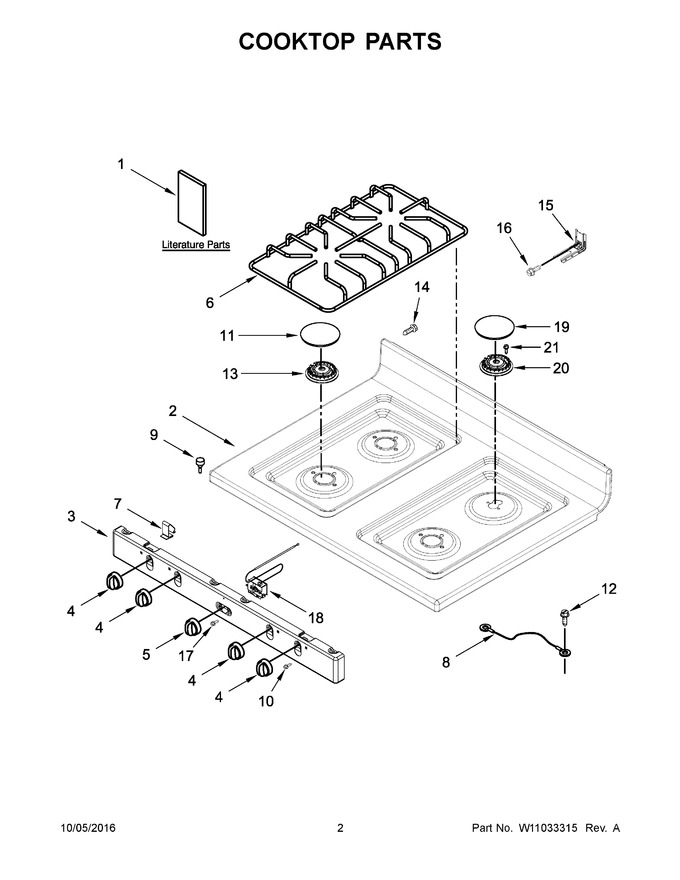

02 - Cooktop Parts
03 - Backguard Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Oven And Broiler Parts
07 - Door Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10821262 | Instructions, Installation |
|
- | |||||
| 2 | W11032725 | Cooktop (black) (Replaces: W10818512) |
|
- | |||||
| 3 | W10620544 | Panel, Manifold (black) |
|
- | |||||
| 4 | WPW10614598 | Knob, Burner (black) (Replaces: W10614598) |
|
$ 21.72 | |||||
| 5 | W11690132 | Knob, Oven (black) (Replaces: W10615601) |
|
- | |||||
| 6 | WPW10578251 | Grate, Burner (black) (Replaces: W10578251) |
|
$ 44.52 | |||||
| 7 | W11229684 | Clip, Cooktop (Replaces: 98004722) |
|
$ 11.20 | |||||
| 8 | 3184020 | Wire, Ground (Replaces: 98014544) |
|
$ 78.23 | |||||
| 9 | W10831827 | Bumper, Cooktop (Replaces: 98013389) |
|
- | |||||
| 10 | 98005658 | Screw |
|
- | |||||
| 11 | WP98017461 | Cap, Burner (black (left Front, Left Rear, & Right Front)) (Replaces: 98017461) |
|
$ 63.79 | |||||
| 12 | W10850756 | Screw, Ground (Replaces: 8534079) |
|
$ 7.38 | |||||
| 13 | WPW10636224 | Burner, Standard (left Front, Left Rear, & Right Front) (Replaces: W10636224) |
|
Immediately | $ 62.19 | ||||
| 14 | WP98007225 | Screw (Replaces: 98007225) |
|
$ 6.57 | |||||
| 15 | WPW10613666 | Bracket, Anti-tip (Replaces: W10613666) |
|
$ 16.16 | |||||
| 16 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 17 | WP3400882 | Screw (Replaces: 98005663) |
|
Immediately | $ 6.80 | ||||
| 18 | WPW10636339 | Thermostat (Replaces: W10636339) |
|
$ 142.94 | |||||
| 19 | WPW10169985 | Burner Cap, Auxiliary (black (right Rear)) (Replaces: W10169985) |
|
$ 59.99 | |||||
| 20 | WPW10515453 | Burner, Auxiliary (6k) (right Rear) (Replaces: W10515453) |
|
$ 89.36 | |||||
| 21 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.70 | ||||
| 1A | W10620422 | Guide, Use And Care |
|
- | |||||
| 1B | 98007130 | Tips, Safe Cooking (english) |
|
- | |||||
| 1C | 98007032 | Sheet, Tech |
|
- | |||||
| 2A | W11032726 | Cooktop (white) (Replaces: W10818513) |
|
- | |||||
| 3A | W10620542 | Panel, Manifold (white) |
|
- | |||||
| 4A | WPW10614597 | Knob, Burner (white) (Replaces: W10614597) |
|
$ 22.03 | |||||
| 5A | W10814920 | Knob, Oven (white) (Replaces: W10615600) |
|
- | |||||
| NI | 549193 | Clamp, Cord (Replaces: 98005894) |
|
$ 12.65 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10556705 | Harness, Main |
|
- | |||||
| NI | 98005896 | Clip, Wire |
|
- | |||||
| NI | 3196696 | Clip, Harness |
|
- | |||||
| NI | 98015022 | Bushing, Snap |
|
- | |||||
| NI | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 30.09 |
