01 - Cover Sheet


02 - Top And Cabinet Parts

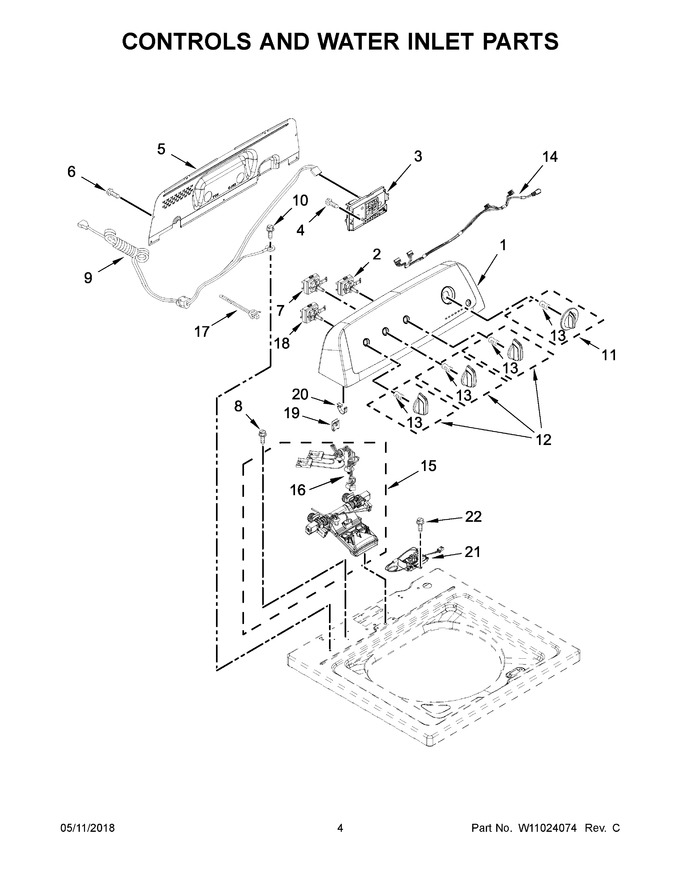

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11027905		Panel, Console   (Replaces: W10774512)		Appelez-nous	-
2	W11168256		Switch, Rotary Encoder (2 Position)   (Replaces: W10414381)			Immediately	$ 197.20
3	W11125192		Control Unit Assembly, Machine And Motor   (Replaces: W11099826)		Appelez-nous	-
4	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
5	W10409320		Panel, Console Rear Cover				$ 237.41
6	W11685943		Screw   (Replaces: W10660565)				$ 13.47
7	WPW10414398		Switch, Rotary Encoder (4 Position)   (Replaces: W10414398)				$ 179.60
8	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
9	W10836356		Cord, Universal Power		Appelez-nous	-
10	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 7.92
11	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 7.50
12	WPW10453947		Assembly, Control Knob (white)   (Replaces: W10453947)				$ 49.28
13	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
14	W10694671		Harness, Upper				$ 171.54
15	W11038628		Inlet Assembly, Water   (Replaces: W11026622)				$ 220.41
16	W10917060		Harness, Valve		Appelez-nous	-
17	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.47
18	WPW10414397		Switch, Rotary Encoder (3 Position)   (Replaces: W10414397)				$ 122.49
19	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
20	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
21	W11254883		Line Filter Assy   (Replaces: W10906191)		Appelez-nous	-
22	W11568617		Screw   (Replaces: W10567155)				$ 13.25
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 25.24
NI	N/P		Adapter, Power Cord		Appelez-nous	-
