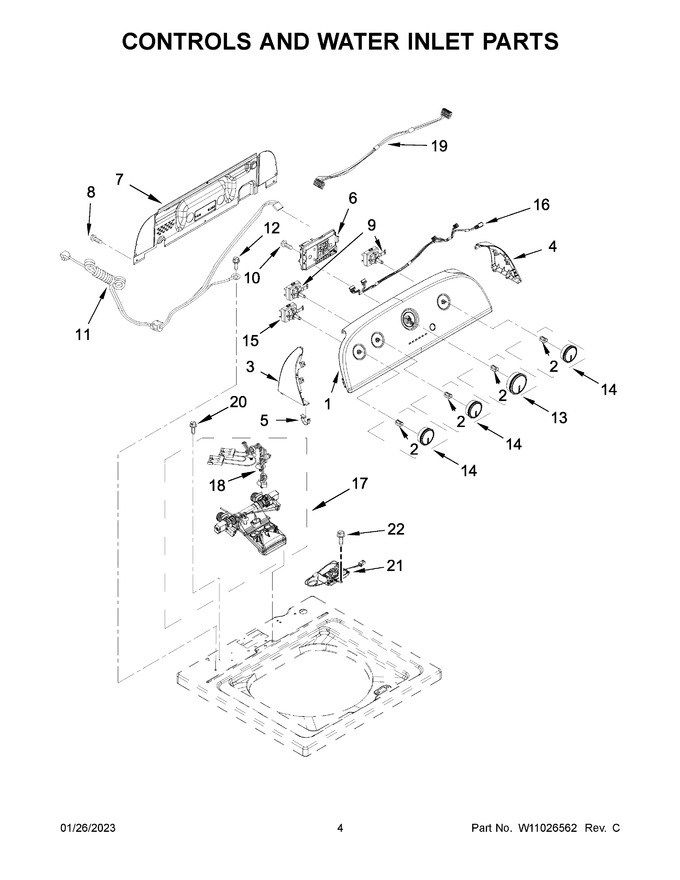

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11099226 Panel, Console   (Replaces: W10774519) Appelez-nous -
2 WP8536939 Clip, Spring   (Replaces: 8536939) In-Stock Immediately $ 7.38

3 W10806902 End Cap (left) (white) Appelez-nous -
4 W10806901 End Cap (right) (white) Appelez-nous -
5 WP8312709 Clip, Console   (Replaces: 8312709) In-Stock Immediately $ 14.93

6 W11125029 Control Unit Assembly, Machine And Motor   (Replaces: W11085115) Appelez-nous -
7 W10552335 Panel, Console Rear Cover Special Order $ 308.85

8 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 7.56

9 WPW10285512 Switch, Rotary Encoder (4 Position)   (Replaces: W10285512) In-Stock Immediately $ 171.42

10 WP90767 Screw   (Replaces: 90767) In-Stock Immediately $ 7.43

11 W10834290 Power Cord, Universal Appelez-nous -
12 W10846509 Screw   (Replaces: 3400076) In-Stock Immediately $ 7.38

13 W11501455 Knob, Timer (white/metallic)   (Replaces: W10576634) Special Order $ 41.20

14 W10576636 Assembly, Control Knob (white/metallic) Appelez-nous -
15 WPW10285517 Switch, Rotary Encoder (3 Position)   (Replaces: W10285517) Special Order $ 122.27

16 W10694682 Harness, Upper Appelez-nous -
17 W11038628 Inlet Assembly, Water   (Replaces: W11026622) Special Order $ 220.41

18 W10917060 Harness, Valve Appelez-nous -
19 W10786100 Harness, Jumper Special Order $ 170.98

20 WPW10213953 Screw   (Replaces: W10213953) In-Stock Immediately $ 6.80

21 W11660637 Assembly, Line Filter   (Replaces: W10906192) Appelez-nous -
22 W11568617 Screw   (Replaces: W10567155) Special Order $ 13.25

NI WPW10475423 10a Cord Adapter (type B)   (Replaces: W10475423) Special Order $ 19.58

NI W10446855 10a Cord Lock Appelez-nous -
NI WPW10476822 10a Cord Adapter (european)   (Replaces: W10476822) Special Order $ 72.81

NI WPW10476820 10a Cord Adapter (british)   (Replaces: W10476820) Special Order $ 25.24


    View Diagram in Separate Window     Print Icon   Print Part List
