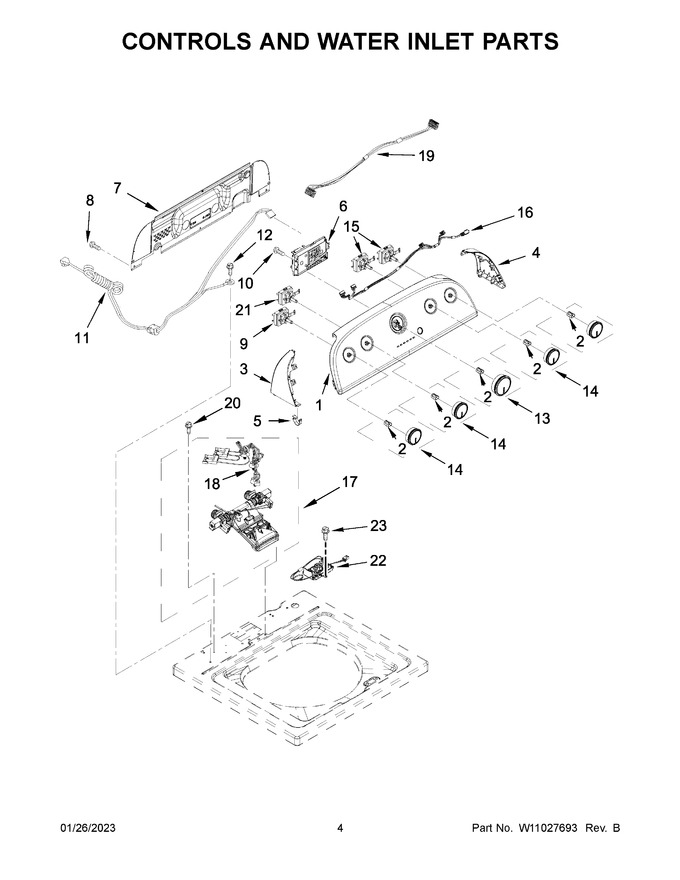

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11099771		Panel, Console   (Replaces: W10881776)		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
3	W10806902		End Cap (left) (white)		Appelez-nous	-
4	W10806901		End Cap (right) (white)		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W11125198		Control Unit Assembly, Machine And Motor   (Replaces: W10863048)		Appelez-nous	-
7	W10552335		Panel, Console Rear Cover				$ 308.85
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
9	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
11	W10834290		Power Cord, Universal		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	W11501455		Knob, Timer (white/metallic)   (Replaces: W10576634)				$ 41.20
14	W10576636		Assembly, Control Knob (white/metallic)		Appelez-nous	-
15	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 163.89
16	W11211519		Harness, Upper   (Replaces: W10694680)				$ 166.32
17	W11038628		Inlet Assembly, Water   (Replaces: W10790126)				$ 220.41
18	W10678671		Harness, Valve				$ 166.83
19	W10786100		Harness, Jumper				$ 170.98
20	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
21	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 142.31
22	W11660637		Assembly, Line Filter   (Replaces: W10906192)		Appelez-nous	-
23	W11568617		Screw   (Replaces: W10567155)				$ 13.25
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 72.81
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10475423		10a Cord Adapter (type B)   (Replaces: W10475423)				$ 19.58
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 25.24
