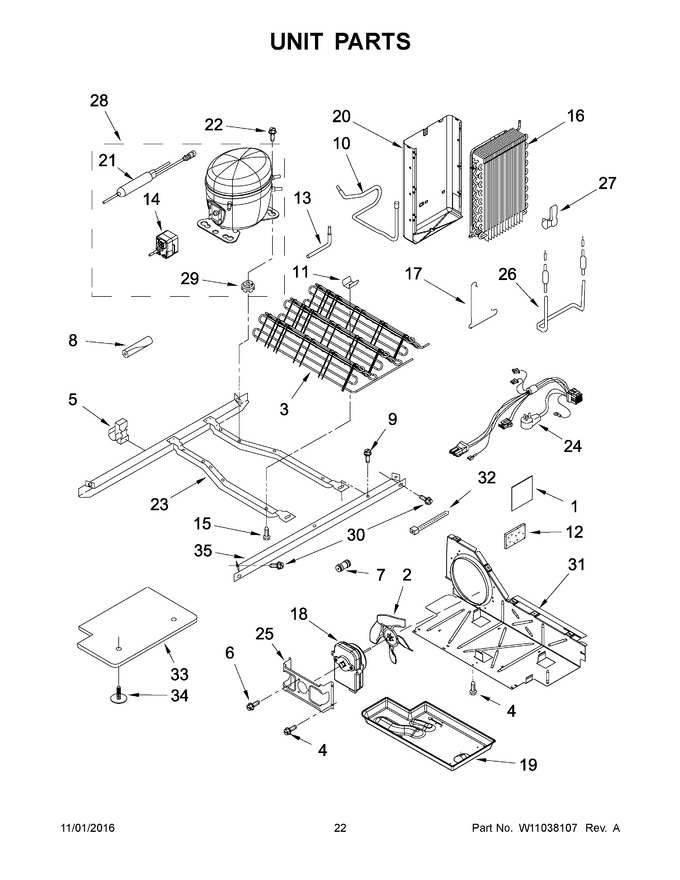

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2217070 | Pad, Foam |
|
$ 19.87 | |||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 22.67 | ||||
| 3 | 2324712 | Assembly, Condenser |
|
$ 291.11 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 5 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 10.01 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.09 | |||||
| 7 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 33.29 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 19.19 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 10 | 2205764 | Tube, Suction (Replaces: W10576271) |
|
$ 80.26 | |||||
| 11 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 17.44 | |||||
| 12 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 13 | 2325479 | Tube, Process |
|
- | |||||
| 14 | WPW10233421 | Inverter Box Assembly (Replaces: W10233421) |
|
$ 424.45 | |||||
| 15 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.92 | |||||
| 16 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 321.16 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W11127829 | Motor, Condenser Fan (Replaces: W10527155) |
|
Immediately | $ 203.92 | ||||
| 19 | WPW10614158 | Tray, Evaporator (Replaces: W10614158) |
|
Immediately | $ 142.34 | ||||
| 20 | WPW10194474 | Assembly, Heat Shield And Drain Pan (Replaces: W10194474) |
|
$ 112.96 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10771114) |
|
Immediately | $ 27.70 | ||||
| 22 | W11417341 | Screw (Replaces: W10476309) |
|
$ 12.66 | |||||
| 23 | 2304903 | Frame, Unit Mounting |
|
$ 220.21 | |||||
| 24 | W10821005 | Unit, Harness |
|
- | |||||
| 25 | WP2181929 | Bracket, Fan Mounting (Replaces: 2181929) |
|
$ 11.64 | |||||
| 26 | WPW10495967 | Heater, Defrost (Replaces: W10495967) |
|
Immediately | $ 150.60 | ||||
| 27 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 28 | W10276644 | Compressor (Replaces: W10168473) |
|
Immediately | $ 685.42 | ||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 30 | 489340 | Bolt |
|
- | |||||
| 31 | W10332806 | Baffle, Air |
|
$ 102.82 | |||||
| 32 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 33 | W10836751 | Cover, Unit |
|
- | |||||
| 34 | 489396 | Clip |
|
$ 10.13 | |||||
| 35 | W10207512 | Rail, Unit Mounting |
|
- | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge 5.3 Oz (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 16.79 |
