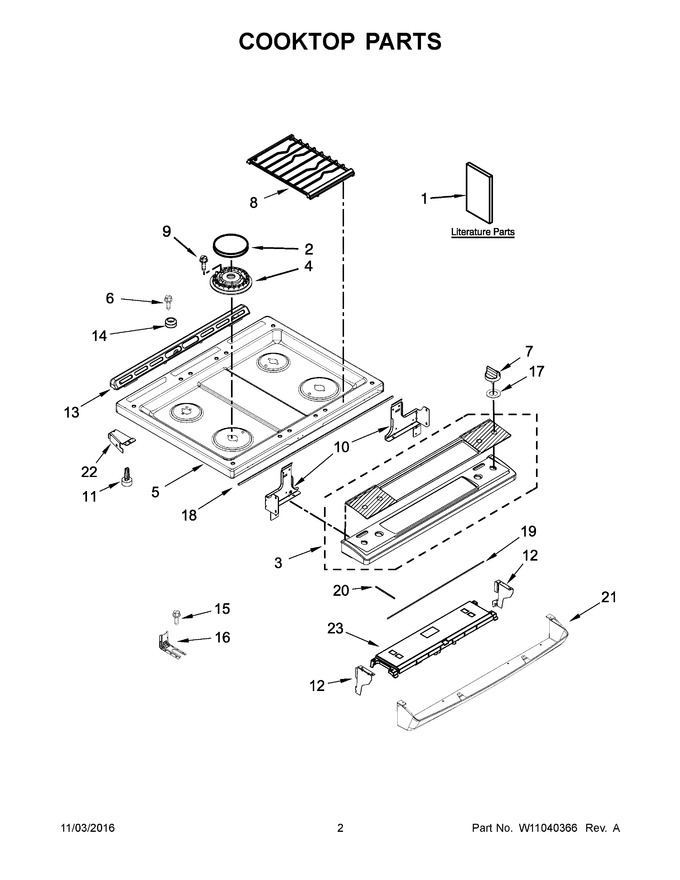

02 - Cooktop Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10842011		Instructions, Installation		Appelez-nous	-
2	W10825881		Kit, Burner Cap (black)				$ 91.31
3	W11043034		Console (stainless)   (Replaces: W10825495)		Appelez-nous	-
4	W11211506		Spreader, Flame (left Front)   (Replaces: W10732322)				$ 117.72
5	W11042989		Cooktop (black)   (Replaces: W10797933)				$ 468.96
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
7	W10844793		Knob (stainless)				$ 72.17
8	W11384204		Kit, Grate (black)   (Replaces: W10823485)		Appelez-nous	-
9	W11244557		Screw   (Replaces: 3196173)				$ 12.86
10	W10814303		Support, Cooktop (left)		Appelez-nous	-
11	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 15.85
12	W10547960		Bracket, Console (left)				$ 20.90
13	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 185.00
14	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 13.42
15	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
16	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 20.73
17	W11131701		Bushing (black)   (Replaces: W10739036)				$ 20.94
18	W10802441		Gasket, Console/ Cooktop   (Replaces: W10612719)			Immediately	$ 20.46
19	W10802457		Gasket, Console   (Replaces: W10689101)				$ 19.20
20	W11744482		Gasket, Console Short   (Replaces: W10689102)				$ 20.63
21	W10894124		Console, Lower Panel (black)   (Replaces: W10816943)				$ 504.32
22	W10162253		Brace, Corner (left)				$ 66.72
23	W11043416		Electronic Control (fcq)   (Replaces: W10806871)				$ 425.07
10A	W10814304		Support, Cooktop (right)		Appelez-nous	-
10B	W10814305		Bracket, Console (center)		Appelez-nous	-
12A	W10547961		Bracket, Console (right)				$ 20.90
1A	W10887093		Guide, Use And Care		Appelez-nous	-
1B	W10842031		Sheet, Tech		Appelez-nous	-
1C	W10850074		Diagram, Wiring		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
22A	W10162252		Brace, Corner (right)				$ 70.73
4A	W11699919		Spreader, Flame (left Rear)   (Replaces: W10732319)				$ 150.60
4B	W11708326		Spreader, Flame (right Front & Right Rear)   (Replaces: W10732320)				$ 43.02
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10800475		Harness, Main				$ 170.71
NI	W10800478		Harness, Bake/broil				$ 176.41
NI	W10817974		Harness, Console		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	W10580229		Wire, Ground				$ 34.40
NI	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 6.57
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-
