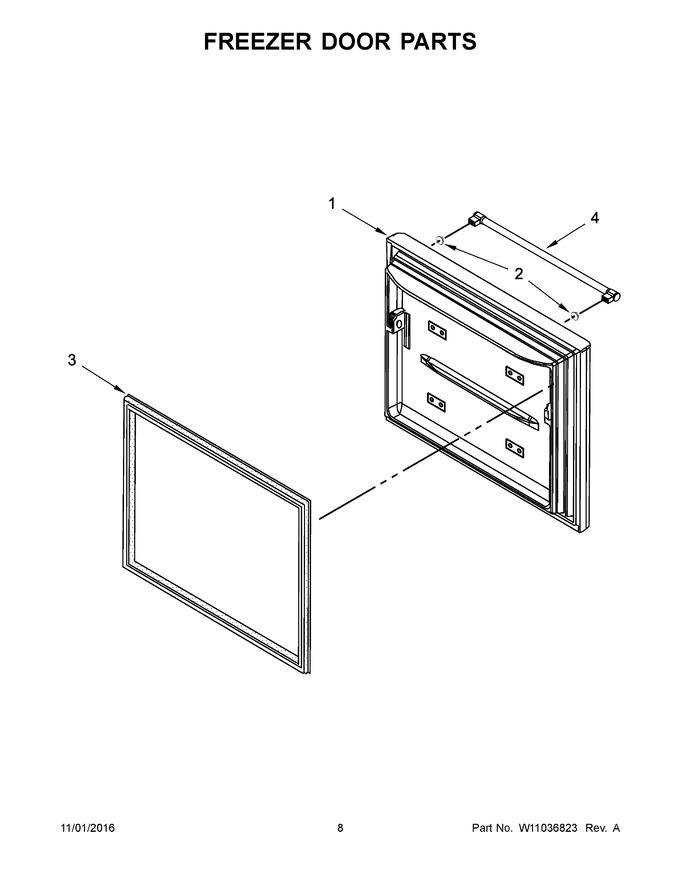

05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10353182 | Door, Freezer (includes Illustration 3) (white) (Replaces: W10353182) |
|
$ 548.60 | |||||
| 2 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 3 | W10460611 | Gasket, Door (beige) (Replaces: W10465758) |
|
Immediately | $ 273.77 | ||||
| 4 | W11039793 | Assembly, Handle (white) (Replaces: W10891389) |
|
$ 260.38 | |||||
| 1A | LW10413530 | Door, Freezer (includes Illustration 3) (black) (Replaces: W10413530) |
|
$ 446.88 | |||||
| 3A | W11625017 | Gasket, Door (black) (Replaces: W10465761) |
|
$ 305.72 | |||||
| 4A | W11039795 | Assembly, Handle (black) (Replaces: W10891388) |
|
$ 260.38 |
