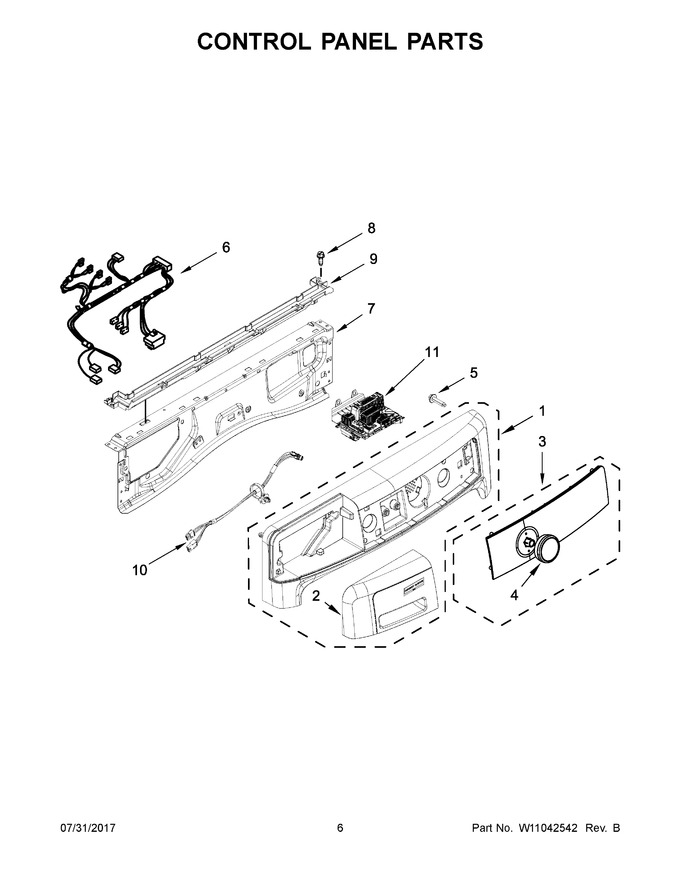

01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts
04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11218377 | Assembly, Console (white) (Replaces: W10783709) |
|
Immediately | $ 351.54 | ||||
| 2 | W11233991 | Handle, Drawer (white) (Replaces: W10783702) |
|
$ 97.60 | |||||
| 3 | W10911040 | Assembly, Iml (white) (Replaces: W10825104) |
|
$ 641.84 | |||||
| 4 | W10853910 | Assembly, Control Knob (chrome) (Replaces: W10727011) |
|
$ 48.55 | |||||
| 5 | W10489172 | Screw |
|
$ 10.78 | |||||
| 6 | W11229597 | Harness, Main (upper) (Replaces: W10685626) |
|
Immediately | $ 153.39 | ||||
| 7 | W10208197 | Bracket, Console |
|
$ 157.09 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.54 | ||||
| 9 | W11172160 | Channel, Water (Replaces: W10796900) |
|
$ 64.13 | |||||
| 10 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 25.69 | |||||
| 11 | W11033857 | Control Unit, Appliance |
|
- |
