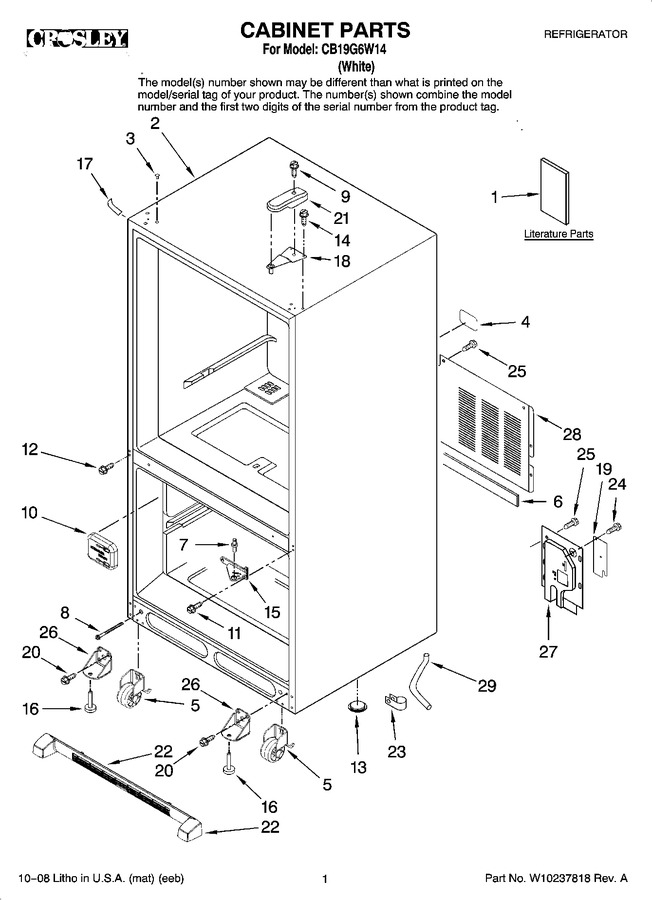

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175450		Use & Care Guide		Appelez-nous	-
1	W10183285		Energy Guide		Appelez-nous	-
1	W10169671		Tech Sheet		Appelez-nous	-
3	WP67001130		Plug, Button (3) (white)   (Replaces: M0310729)			Immediately	$ 8.21
4	W11685757		Label, Fill Tube   (Replaces: 67005064)				$ 7.41
5	12580304KVF		Roller Assy. (2)		Appelez-nous	-
6	B5759649		Gasket		Appelez-nous	-
7	WP67006744		Pin, Center Hinge   (Replaces: 67006744)				$ 8.68
8	71003131		Bolt, Adjusting (front Roller)   (Replaces: 67006611)			Immediately	$ 7.08
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.55
10	WP67001098		Cover, Fill Tube   (Replaces: 67001098)				$ 8.43
11	W11573362		Screw   (Replaces: 67006380)				$ 14.72
12	WP489349		Screw   (Replaces: 67005822)			Immediately	$ 8.43
13	A3076901		Plug, Button				$ 5.70
14	WP489349		Screw (3)   (Replaces: 67006303)			Immediately	$ 8.43
15	W11689473		Hinge, Center (white)   (Replaces: 67006960)				$ 69.79
16	W11177593		Foot Brake   (Replaces: 67003868)				$ 12.18
17	67003484		Cover, Corner (white)				$ 21.42
18	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 47.13
19	12479901		Plate, Cover		Appelez-nous	-
20	67006564		Screw (8)			Immediately	$ 8.15
21	67001014		Cover, Hinge (white)				$ 22.34
22	67003849		Grille, Toe (white)				$ 51.91
23	W10157973		Clip, Drain Tube				$ 7.80
24	WP489128		Screw   (Replaces: 67006662)				$ 11.40
25	67006425		Screw			Immediately	$ 7.30
26	67001069		Bracket, Foot (2)		Appelez-nous	-
27	67001173		Cover, Water Valve		Appelez-nous	-
28	12575101WD		Cover, Unit				$ 73.26
29	W10164397		Tube, Drain				$ 15.53
