01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Blower Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

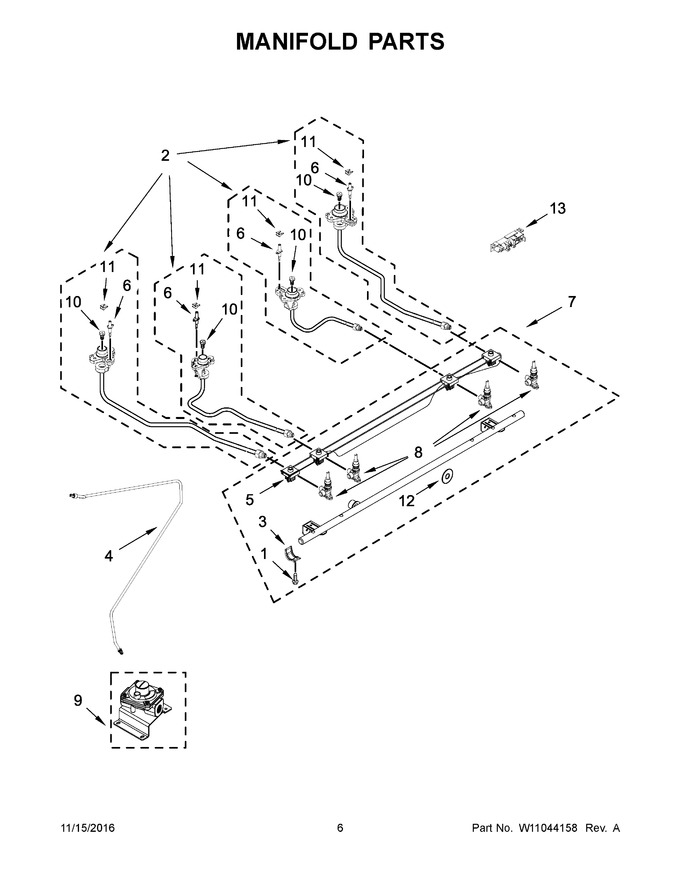

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11666001 | Screw (Replaces: W10246216) |
|
$ 12.85 | |||||
| 2 | W10552136 | Orifice, Assembly (left Front) |
|
$ 114.09 | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 20.48 | |||||
| 4 | W10552945 | Tube, Supply |
|
$ 84.82 | |||||
| 5 | W10578095 | Harness, Spark Switch |
|
$ 153.32 | |||||
| 6 | W11611678 | Electrode (left Front) (Replaces: W10496874) |
|
Immediately | $ 29.68 | ||||
| 7 | W10556307 | Manifold, Assembly (Replaces: W10790616) |
|
$ 336.55 | |||||
| 8 | W11223016 | Valve, Gas (left Front & Right Front) (Replaces: W10566042) |
|
$ 238.25 | |||||
| 9 | W10661850 | Assembly, Regulator & Bracket |
|
$ 118.13 | |||||
| 10 | W11690133 | Orifice (left Front) (Replaces: W10657946) |
|
Immediately | $ 31.75 | ||||
| 11 | W10575401 | Clip, Spring (electrode) (left Front, Right Front, Right Rear) |
|
Immediately | $ 10.17 | ||||
| 12 | W10140571 | Seal, Switch Shaft |
|
$ 6.93 | |||||
| 13 | W11693498 | Module, Spark (Replaces: W10475148) |
|
Immediately | $ 95.14 | ||||
| 10A | W10756981 | Orifice (left Rear) (Replaces: W10515054) |
|
Immediately | $ 16.12 | ||||
| 10B | W10821182 | Orifice (right Front) (Replaces: W10434277) |
|
Immediately | $ 84.11 | ||||
| 10C | W11752198 | Orifice (right Rear) (Replaces: W10657949) |
|
$ 29.97 | |||||
| 11A | W10256046 | Clip, Spring (electrode) (left Rear) |
|
$ 10.40 | |||||
| 2A | W10552133 | Orifice, Assembly (left Rear) |
|
$ 111.38 | |||||
| 2B | W10552143 | Orifice, Assembly (right Front) |
|
$ 113.18 | |||||
| 2C | W10552142 | Orifice, Assembly (right Rear) |
|
$ 112.99 | |||||
| 6A | W10496873 | Electrod (left Rear) |
|
- | |||||
| 6B | W11447374 | Electrode (right Front) (Replaces: W10496870) |
|
Immediately | $ 41.49 | ||||
| 6C | W11220383 | Electrode (right Rear) (Replaces: W10496872) |
|
Immediately | $ 59.56 | ||||
| 8A | W10873136 | Valve, Gas (left Rear) (Replaces: W10831588) |
|
$ 245.39 | |||||
| 8B | W11163975 | Valve, Gas (right Rear) (Replaces: W10566050) |
|
Immediately | $ 238.25 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11126047 | Kit, Lp Conversion (burners) (Replaces: W10566083) |
|
Immediately | $ 113.85 |
