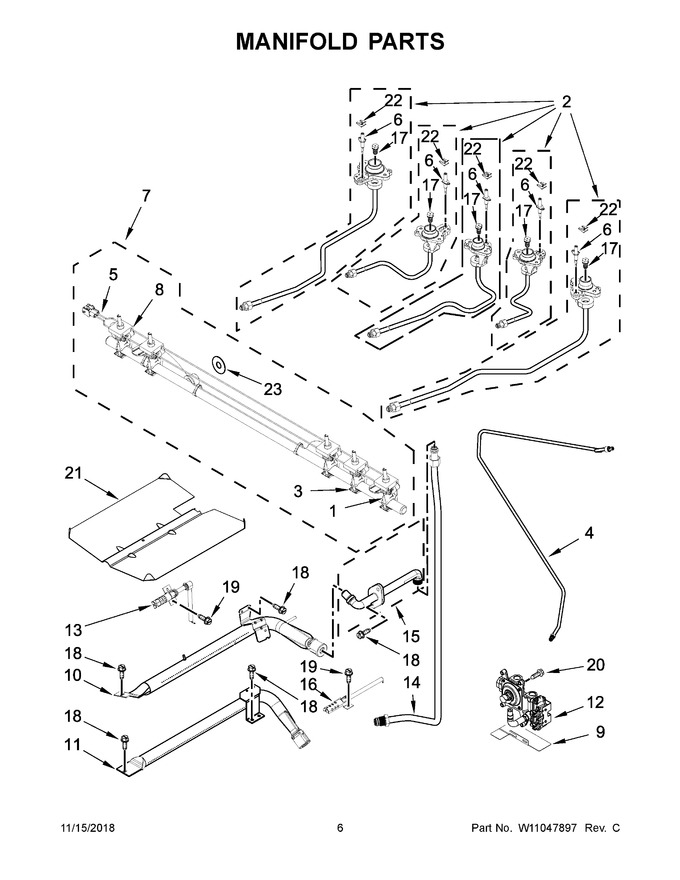

04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11666001 | Screw (Replaces: W10246216) |
|
$ 12.85 | |||||
| 2 | W10552128 | Assembly, Orifice (left Front) |
|
$ 199.89 | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 20.48 | |||||
| 4 | W10552140 | Tube, Supply |
|
$ 75.38 | |||||
| 5 | W11677625 | Harness, Spark Switch (Replaces: W10478601) |
|
$ 70.31 | |||||
| 6 | W11611678 | Electrode (left Front) (Replaces: W10496874) |
|
Immediately | $ 29.68 | ||||
| 7 | W10885072 | Assembly, Manifold (Replaces: W10850515) |
|
$ 307.50 | |||||
| 8 | W11223016 | Valve, Gas (left Front & Right Front) (Replaces: W10566042) |
|
$ 238.25 | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 85.48 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 82.49 | ||||
| 12 | W10861656 | Valve, Regulator (Replaces: W10554066) |
|
Immediately | $ 301.09 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 98.85 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 170.84 | |||||
| 15 | W10583216 | Fitting, Broil Burner |
|
$ 86.27 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 93.71 | ||||
| 17 | W11690133 | Orifice (17k) (left Front) (Replaces: W10657946) |
|
Immediately | $ 31.75 | ||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 21 | 3601P336-45 | Baffle, Broil Burner |
|
$ 204.38 | |||||
| 22 | W10575401 | Clip, Spring (electrode) |
|
Immediately | $ 10.17 | ||||
| 23 | W10140571 | Seal, Switch Shaft |
|
$ 6.93 | |||||
| 17A | W10756981 | Orifice (5k) (left Rear) (Replaces: W10515054) |
|
Immediately | $ 16.12 | ||||
| 17B | W10821182 | Orifice (1.8mm) (right Front) (Replaces: W10434277) |
|
Immediately | $ 84.11 | ||||
| 17C | W11752198 | Orifice (9.2k) (right Rear) (Replaces: W10657949) |
|
$ 29.97 | |||||
| 17D | W10657947 | Orifice (8k) (center) |
|
$ 20.16 | |||||
| 2A | W10552127 | Assembly, Orifice (left Rear) |
|
$ 162.59 | |||||
| 2B | W10552126 | Assembly, Orifice (right Front) |
|
$ 224.79 | |||||
| 2C | W10552125 | Assembly, Orifice (right Rear) |
|
$ 182.30 | |||||
| 2D | W10885071 | Assembly, Orifice (center) (Replaces: W10836763) |
|
$ 89.66 | |||||
| 6A | W11050467 | Electrode (left Rear) (Replaces: W10464799) |
|
Immediately | $ 59.56 | ||||
| 6B | W11447374 | Electrode (right Front & Center) (Replaces: W10496870) |
|
Immediately | $ 41.49 | ||||
| 6C | W11220383 | Electrode (right Rear) (Replaces: W10496872) |
|
Immediately | $ 59.56 | ||||
| 8A | W11672512 | Valve, Gas (left Rear) (Replaces: W10566049) |
|
$ 91.86 | |||||
| 8B | W11163975 | Valve, Gas (right Rear) (Replaces: W10566050) |
|
Immediately | $ 238.25 | ||||
| 8C | W10850893 | Valve, Gas (center) |
|
$ 250.49 | |||||
| NI | W11126047 | Kit, Lp Conversion (Replaces: W10566083) |
|
Immediately | $ 113.85 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11087486 | Kit, Lp Conversion (bake/broil) (Replaces: W10566535) |
|
Immediately | $ 106.16 |
