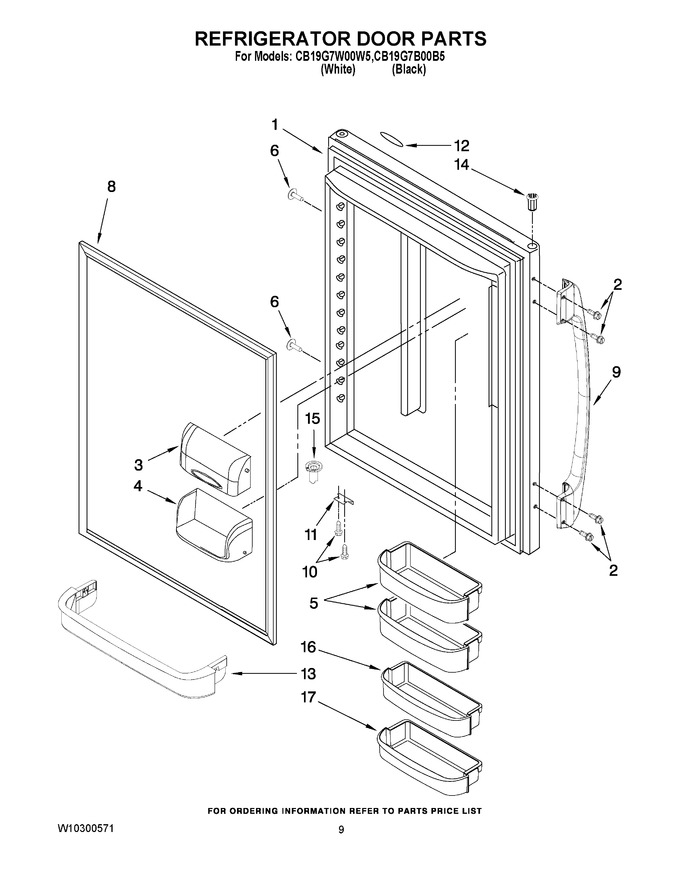

05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658529WQ		Door, Refrigerator (white)				$ 439.53
1	12658529BQ		Door, Refrigerator (black)				$ 443.92
2	67006806		Screw, Handle (black)   (Replaces: 12992803)				$ 12.62
2	12992802		Screw, Handle (white)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 79.21
5	67001141		Bucket, Small (2)   (Replaces: 12557202)			Immediately	$ 71.02
6	12991103		Screw, Handle Hole (white)				$ 12.03
6	12991105		Screw, Handle Hole (black)		Appelez-nous	-
8	WPW10443309		Gasket, Door (white)   (Replaces: W10164030)			Immediately	$ 328.72
8	WPW10436245		Gasket, Door (black)   (Replaces: W10164031)				$ 326.12
9	12845806B		Handle, Door (black)		Appelez-nous	-
9	12845806W		Handle, Door (white)		Appelez-nous	-
10	WP98165		Screw   (Replaces: 12990504)				$ 7.71
11	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 13.28
11	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 62.36
12	12951301		Nameplate (white)		Appelez-nous	-
12	12651303		Nameplate (black)		Appelez-nous	-
13	67001139		Retainer, Ref Door   (Replaces: 12557904)			Immediately	$ 94.31
14	67004978		Bushing (4) (black)   (Replaces: 10961006B)				$ 19.89
14	WP67004977		Bushing (4) (white)   (Replaces: 10961006W)				$ 7.38
15	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 81.29
15	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 7.34
16	WP67001021		Bucket, Medium (1)   (Replaces: 12557204V)				$ 76.46
17	12737704		Bucket, Short (1)		Appelez-nous	-
