SELECT A DIAGRAM

01 - Cover Sheet

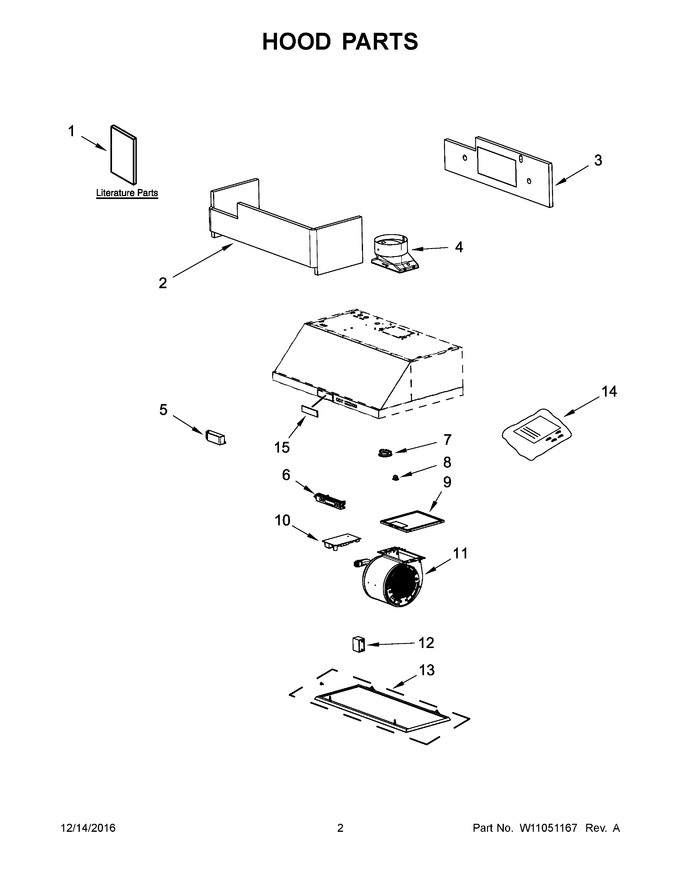

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10674120		Use And Care Guide		Appelez-nous	-
2	W11688383		Insulation, 30" Model Only   (Replaces: W10735393)				$ 116.40
3	W11688384		Insulation, Back, 30" Model Only   (Replaces: W10735394)				$ 113.42
4	W10847841		Damper, Hood (plastic)   (Replaces: W10592040)				$ 140.43
5	W11282989		Driver, Led   (Replaces: W10716819)				$ 237.02
6	W11282990		Control, Electronic   (Replaces: W10727057)				$ 321.27
7	W11794237		Light, Led   (Replaces: W10795142)			Immediately	$ 76.20
8	W10854245		Clip, Panel   (Replaces: W10735735)			Immediately	$ 68.03
9	W10915369		Filter, Grease   (Replaces: W10727013)			Immediately	$ 39.73
10	WPW10291604		Board, Power   (Replaces: W10291604)				$ 284.26
11	W11035826		Blower, Fan   (Replaces: W10727058)			Immediately	$ 388.39
12	W11715950		Capacitor   (Replaces: W10716814)			Immediately	$ 91.53
13	W10735352		Panel, Perimetric, 30" Model Only				$ 199.36
14	W11051290		Hardware, Installation   (Replaces: W11051237)				$ 87.57
15	W10852683		Badge (stainless)   (Replaces: W10113961)				$ 109.47
13A	W10735373		Panel, Perimetric, 36" Model Only				$ 207.52
2A	W10735396		Insulation, 36" Model Only		Appelez-nous	-
3A	W11684913		Insulation, Back, 36" Model Only   (Replaces: W10735397)		Appelez-nous	-
NI	W10272068		Accessories, Kit, Charcoal Filter (for Non-vented Installations Only)			Immediately	$ 64.00
NI	W10446915		Accessories, Kit, 6" Makeup Air				$ 316.52
NI	W10692945		Accessories, Kit, In-line Smart				$ 458.41
NI	W10490330		Accessories, Kit, Recirculation (for Non-vented Installations Only)				$ 104.18
NI	W10613691		Accessories, Kit, Power Cord				$ 52.92
NI	W10692946		Accessories, Assembly, 3 1/4" X 10" Damper (for Rear Venting Only)				$ 127.68

    View Diagram in Separate Window       Print Part List
