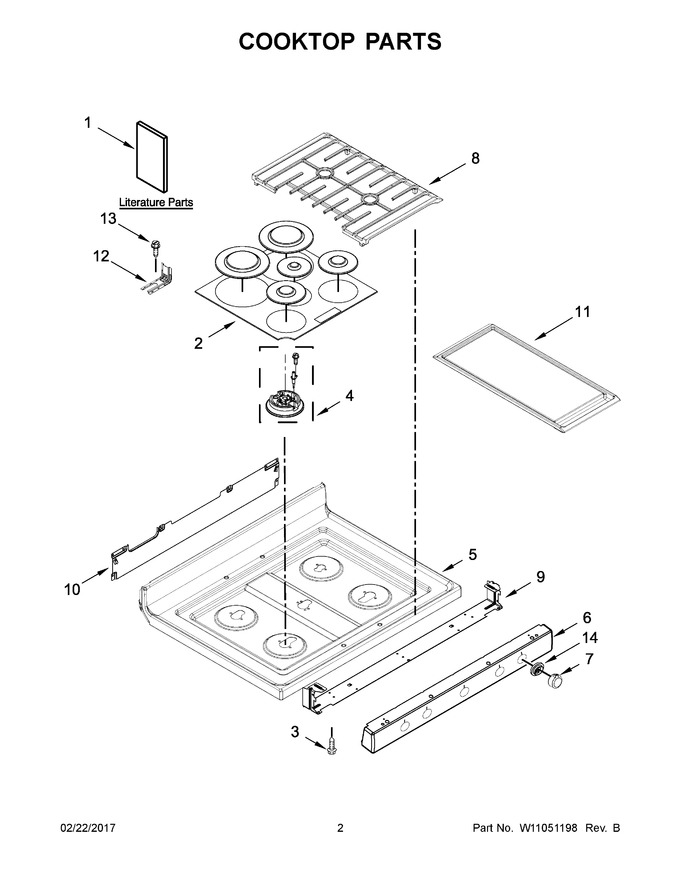

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10694025 | Instructions, Installation |
|
- | |||||
| 2 | WPW10183374 | Kit, Burner Cap (black) (Replaces: W10183374) |
|
$ 180.16 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 4 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 101.22 | |||||
| 5 | W10366730 | Cooktop (black) |
|
- | |||||
| 6 | W11084230 | Panel, Manifold (black Stainless) (Replaces: W10861036) |
|
$ 312.47 | |||||
| 7 | W11030413 | Knob (stainless) (Replaces: W10786063) |
|
Immediately | $ 70.31 | ||||
| 8 | W11381340 | Kit, Grate (black) (Replaces: W10676612) |
|
$ 368.86 | |||||
| 9 | W10534174 | Bracket, Manifold Panel |
|
- | |||||
| 10 | W10530070 | Bracket, Rear Gas Cooktop |
|
- | |||||
| 11 | W10432544 | Griddle |
|
Immediately | $ 62.78 | ||||
| 12 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 13 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 14 | W10814133 | Bezel (stainless (kit Of 5)) (Replaces: W10785119) |
|
Immediately | $ 102.04 | ||||
| 1A | W10694017 | Guide, Use & Care |
|
- | |||||
| 1B | W10694023 | Sheet, Tech (english) |
|
- | |||||
| 1C | W10694029 | Sheet, Tech (french) |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1F | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 4A | WPW10515454 | Assembly, Burner (9.5k) (left Rear & Center) (Replaces: W10515454) |
|
$ 104.17 | |||||
| 4B | WPW10515453 | Burner, Auxiliary (6k) (right Rear) (Replaces: W10515453) |
|
$ 89.36 | |||||
| NI | W10809928 | Harness, Cooktop |
|
$ 186.26 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10797421 | Harness, Main |
|
$ 175.19 | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 194.90 |
